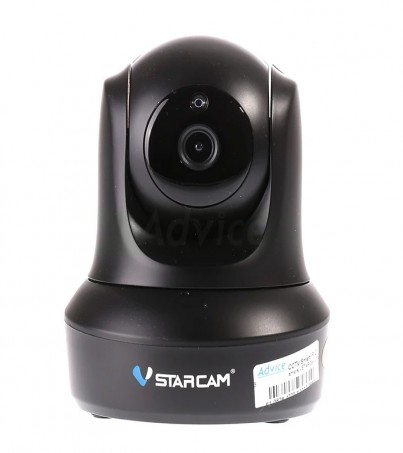

C29S

HI3516E V200 1/2.9 inch 1080p Progressive Scan CMOS

Embedded Linux OS

4.0mm@F2.0/104°

0.3~0.5Lux（Color mode）,0Lux(B&W Mode)

2 MP

Main stream ： 1080p(1920×1080)@30fps/1296p(2304×1296)@30fps
Substream ： 360p(640×360)@15fps

H.264+/H.264 main profile/Motion-JPEG/JPEG

30fps

128～4096kbps

Dual IR-CUT filter auto switch, 6pcs 850nmΦ5mm LED

10m IR distance

Brightness, Contrast, Saturation, hue are adjustable

Input : Built-in -38 dB microphone
Output : Built in Speaker (8Ω 1w)

Pan : 355°
Tilt : 120°

Micro SD/TF card, Support up to 128GB

10Base-T / 100Base-TX, RJ45 connector

WiFi802.11b/g/n
Only support 2.4GHz

TCP/IP, HTTP, TCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPnP, P2P etc.

64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption

Motion detection
Humanoid detection
Humanoid tracking
Crying detection
Smoke detector alarm detection
absence monitoring
Electronic fence

110V-220V, DC5V±5%

Rated power : 3.0W (IR on)
Maximum power consumption : 6.5W (P/T on)

Working Temperature : -10 - 50℃
Working Humidity : <90%

ISO \FCC\ CE\ ROHS
