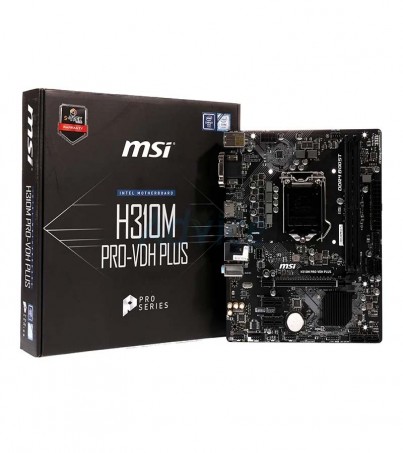

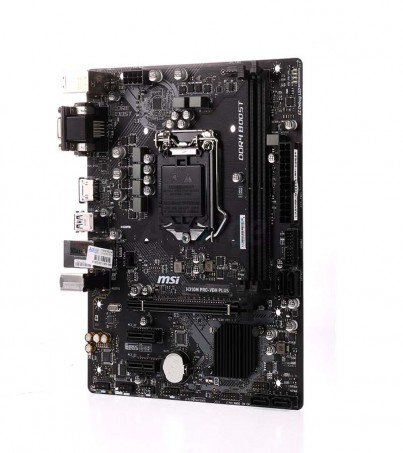

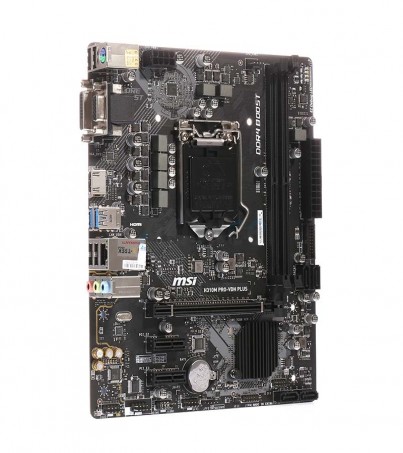

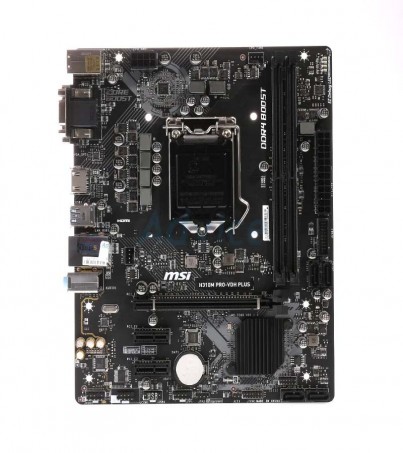

(1151V2) MSI H310M PRO VDH PLUS(By SuperTStore)

Name: (1151V2) MSI H310M PRO VDH PLUS(By SuperTStore)
Brand: MSI
SKU: supt32669-
Price: 2690 THB
Availability: InStock

11%

2,999.00

฿ 2,690.00

ฟรี

ได้รับภายใน : 22 เม.ย. ~ 24 เม.ย., 2024

สามารถเก็บเงินปลายทางได้

การรับประกัน

การรับประกัน : มีการรับประกัน 3 ปี

คืนสินค้าภายใน 15 วัน

คุณสมบัติทั่วไป

คำอธิบายสินค้า

รายละเอียดสินค้า

คะแนนและรีวิว

Q & A

คุณสมบัติทั่วไป

สิ่งที่ให้มาในกล่อง	(1151V2) MSI H310M PRO VDH PLUS	MODEL	(1151V2) MSI H310M PRO VDH PLUS
Chipset	Intel H310	Form Factor	1151 V2
Mainboard Brand	MSI	การรับประกัน	Warranty Available
ระยะเวลาการรับประกัน	3 years

คำอธิบายสินค้า

(1151V2) MSI H310M PRO VDH PLUS

Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
Supports DDR4 Memory, up to 2666MHz
Audio Boost: Reward your ears with studio grade sound quality.
EZ Debug LED: Easiest way to troubleshoot.
X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

รายละเอียดสินค้า

รายละเอียดสินค้า (1151V2) MSI H310M PRO VDH PLUS

H310M PRO-VDH PLUS

STRONGER THAN STEEL

FULLY CONTROLLABLE FAN HEADERS

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans, giving you full control to set up a cool & silent system. The fan headers are conveniently placed with the most popular CPU coolers in mind.

DC OR PWM MODE WITH HYSTERESIS

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

TOTAL CONTROL IN BIOS AND SOFTWARE

Total Fan Control allows you to take control of your fans and check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

AUDIO

PROFESSIONAL SOUND QUALITY

Get the most immersive sound experience. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes.

ENJOY THE LATEST VIDEO STANDARDS

Supporting the latest display connectors for new technologies (OLED, HDR) and legacy connectors for beamers, MSI motherboards are designed to make life easier for any professional user.

4K UHD

Enjoy awesome 4K UHD (2160p ultra-high definition) video playback with MSI motherboards.

4k HDMI

This motherboard is equipped with a HDMI port supporting the latest 4K Ultra-HD 4096×2160p resolution @ 24Hz to provide a breathtaking visual experience.

อ้างอิงจาก : https://www.msi.com

คุณสมบัติ (1151V2) MSI H310M PRO VDH PLUS

Brand	MSI
Model	H310M PRO-VDH PLUS
CPU Support	Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
Socket	1151 V2
Chipset	Intel H310
Memory Support	2 x DDR4 memory slots, support up to 32GB Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC)* Supports DDR4 2666/ 2400/ 2133 MHz (by XMP OC)* Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) *2666 MHz for I7 and I5 processors only.
Graphics	1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30H *Supports up to 2 displays simultaneously.
Audio	Realtek® ALC887 Codec - 7.1-Channel High Definition Audio
Expansion Slots	1 x PCIe 3.0 x16 slot 2 x PCIe 2.0 x1 slots
Storage	Intel® H310 Chipset 4 x SATA 6Gb/s ports - Supports Intel® Rapid Storage Technology
USB	Intel® H310 Chipset 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x Clear CMOS jumper 2 x Front panel connectors 1 x Serial port connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Front panel audio connector 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector

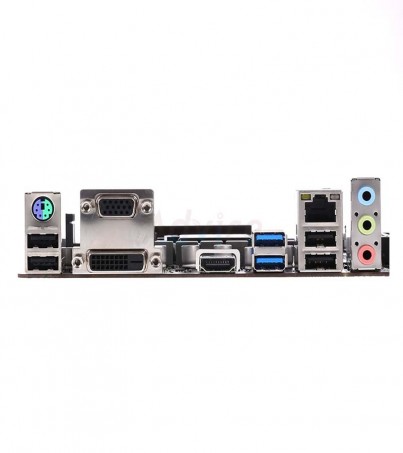

Back Panel Connectors	1 x PS/2 Combo Port 1 x VGA Port 1 x HDMI Port 2 x USB 3.1 Gen1 1 x LAN Port 4 x USB 2.0 Port 1 x DVI-D Port HD Audio Connectors
LAN	1 x RTL8111H Gigabit LAN controller
Form Factor	8.9 in. x 7.3 in. (22.6 cm x 18.5 cm) m-ATX Form Factor
Operating System Support	Windows® 10 64-bit
