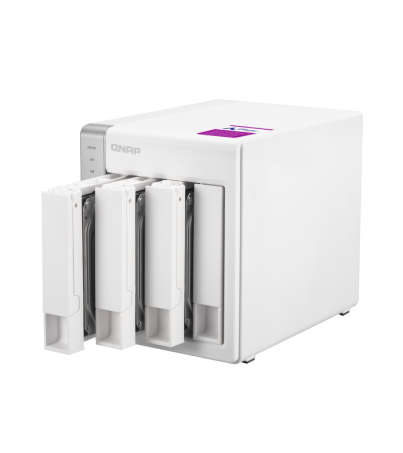

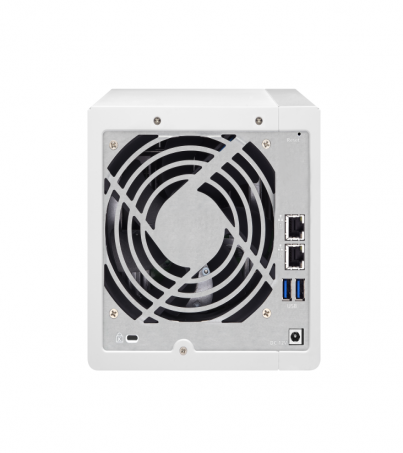

QNAP NETWORK ATTACHED STORAGE (TS-431P2-1G)

Ordering P/N

TS-431P2-1G

CPU

Annapurna Labs AL-314, 4-core,1.7GHz

System Memory

1GB DDR3 RAM

RAM slot

1 x SODIMM (Max. 8GB)

Flash Memory

512MB NAND flash

Hard Drive Tray

4

Drive Interface

SATA 6Gb/s, 3Gb/s HDD or SSD; Hot-swappable

USB

3 x USB 3.0 port (Front x1 ; Rear x 2)

LAN Port

2 x GbE RJ45

LED Indicators

System Status, HDD, USB, LAN

Buttons

Power, Reset, USB One-Touch-Copy

System Warning

Buzzer

Form Factor

Tower

Dimensions

169 x 160 x 219 mm
6.65 x 6.3 x 8.62 inch

Weight

3 kg (6.61 lbs)/4.3 kg (9.48 lbs)

Power Consumption (W)

HDD standby: 10.62W
In operation: 23.72W

Temperature

0-40˚C

Relative Humidity

5~95% non-condensing, wet bulb: 27˚C

Power Supply

AC adapter, 90W, 100 - 240V

Sound Level

Operating Low speed: 19.5 dB(A)

Security Design

Kensington security slot

Fan

1 x 12cm smart Fan (12V DC)
