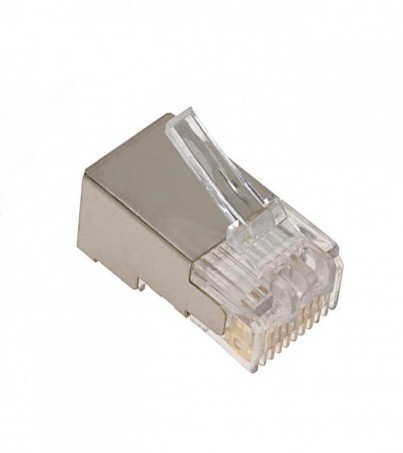

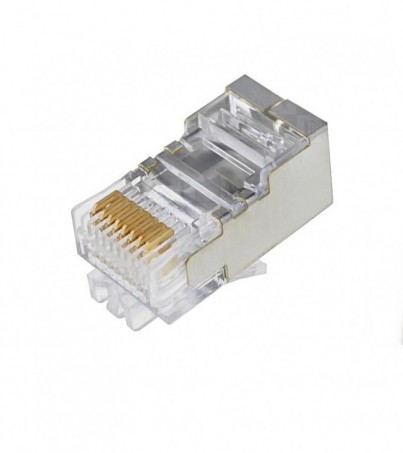

Commscope AMP, PLUG CAT5 SHIELD (6-569530-3)

73%
180.00
฿ 50.00

ได้รับภายใน : 31 มี.ค. ~ 02 เม.ย., 2024

สามารถเก็บเงินปลายทางได้

การรับประกัน

การรับประกัน : 7 วัน

คืนสินค้าภายใน 15 วัน

คุณสมบัติทั่วไป
คำอธิบายสินค้า
รายละเอียดสินค้า
คะแนนและรีวิว
Q & A
คุณสมบัติทั่วไป
สิ่งที่ให้มาในกล่อง MODEL Commscope AMP, PLUG CAT5 SHIELD (6-569530-3)
การรับประกัน รับประกันโดยร้านผู้จัดจำหน่าย ระยะเวลาการรับประกัน 7 days
คำอธิบายสินค้า
MP-88S-R-1: SHLD, RND (PLUG CAT5,SHIELD)
รายละเอียดสินค้า
Product Classification
Portfolio  CommScope®
Product Type  Modular plug
Regional Availability  Asia   |   Australia/New Zealand   |   EMEA   |   Latin America   |   North America

Dimensions
Compatible Cable Diameter, maximum  5.08 mm   |   0.20 in
Compatible Cable Diameter, minimum  4.83 mm   |   0.19 in
Compatible Insulated Conductor Diameter, maximum  0.990 mm   |   0.039 in
Compatible Insulated Conductor Diameter, minimum  0.860 mm   |   0.034 in

Electrical Specifications
ANSI/TIA Category  5
Current Rating, maximum  0.75 A
Insulation Resistance, minimum  500 mOhm
Safety Voltage Rating  150 Vac

Environmental Specifications
Operating Temperature  -10 °C to +60 °C (+14 °F to +140 °F)
Relative Humidity  Up to 93%, non-condensing
Safety Standard  UL 1863

General Specifications
Cable Type  Round, shielded
Interface  RJ45
Package Quantity  100
Packaging Type  Bag   |   Box   |   Carton
Positions/Loaded Contacts  8/8

Mechanical Specifications
Conductor Gauge, solid  26–24 AWG
Conductor Gauge, stranded  26–24 AWG
Conductor Type  Solid   |   Stranded
Contact Base Material  Phosphor bronze
Contact Plating Material  Gold
Contact Plating Thickness  1.27 µm
Material Type  Glass filled polycarbonate
Plug Insertion Life, minimum  750 times
Plug Shield Base Material  Copper alloy
Plug Shield Plating Material  Nickel
Termination Type  IDC
Regulatory Compliance/Certifications
AgencyClassification
RoHS 2011/65/EUCompliant
