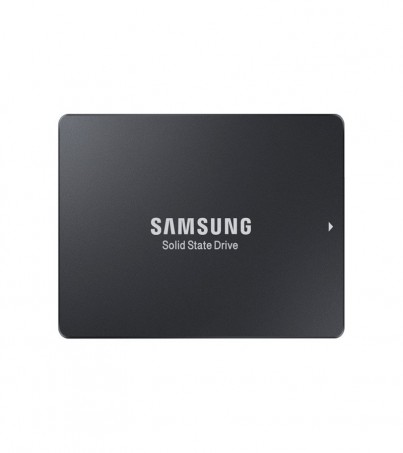

Samsung Enterprise SSD SM863a SATA 960GB (MZ-7KM960NE)

GENERAL

• Hardware Encryption
  Yes
• Capacity
  960 GB
• Interface
  SATA 6Gb/s
• Buffer Size
  1 GB
• Weight
  2.08 oz
• Manufacturer
  Samsung

MISCELLANEOUS

• Encryption Algorithm
  256-bit AES
• MTBF
  2000000 sec
• Hardware Encryption
  Yes

INTERFACE PROVIDED

• Qty
  1
• Connector Type
  7 pin Serial ATA
• Storage Interface
  Serial ATA-600

PERFORMANCE

• Internal Data Rate
  510 MBps (read) / 485 MBps (write)
• 4KB Random Write
  25000 IOPS
• 4KB Random Read
  95000 IOPS

HARD DRIVE

• Form Factor
  2.5"
• Features
  24x7 availability, Advanced ECC Engine, Worldwide Name (WWN), power loss data protection, Auto Garbage Collection Algorithm, Dynamic Thermal Guard protection, End-to-end data protection, Enterprise, Low Power DDR3 SDRAM Cache, Mercury controller, TRIM support, V-NAND Technology
• Drive Writes Per Day (DWPD)
  3.6
• Hard Drive Type
  internal hard drive
• Form Factor (Short)
  2.5"
• Form Factor (metric)
  6.4 cm
• Form Factor (Short) (metric)
  6.4 cm
• Storage Interface
  Serial ATA-600
• Interface
  Serial ATA-600
• Internal Data Rate
  510 MBps
• Internal Data Rate (Write)
  485 MBps
• 4KB Random Read
  95000
• 4KB Random Write
  25000
• Buffer Size
  1 GB

EXPANSION & CONNECTIVITY

• Interfaces
  1 x SATA 6 Gb/s - 7 pin Serial ATA

ENVIRONMENTAL PARAMETERS

• Min Operating Temperature
  32 °F
• Max Operating Temperature
  158 °F

STORAGE HARD DRIVE

• Compliant Standards
  S.M.A.R.T.

HEADER

• Brand
  Samsung
• Product Line
  Samsung SM863a
• Model
  MZ-7KM960NE
• Packaged Quantity
  1
• Compatibility
  PC

DIMENSIONS & WEIGHT

• Width
  2.7 in
• Depth
  3.9 in
• Height
  0.3 in
• Weight
  2.08 oz

POWER CONSUMPTION

• Mode
  idle, read, write
• Value
  1.3 Watt, 2.4 Watt, 2.9 Watt

SERVICE & SUPPORT

• Type
  5 years warranty

SERVICE & SUPPORT DETAILS

• Type
  limited warranty
• Full Contract Period
  5 years / 6,160TBW

SHOCK & VIBRATION TOLERANCE

• Vibration Acceleration (Operating)
  1.5 g

RELIABILITY

• MTBF
  2,000,000 hours

GENERAL

• Manufacturer
  Samsung
