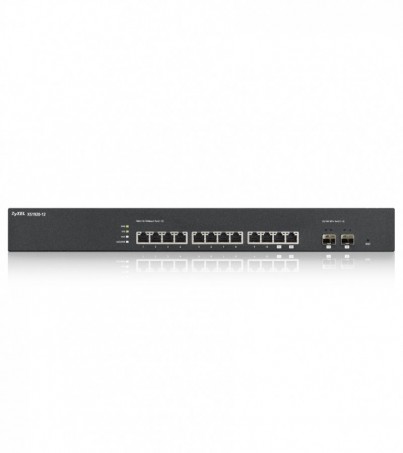

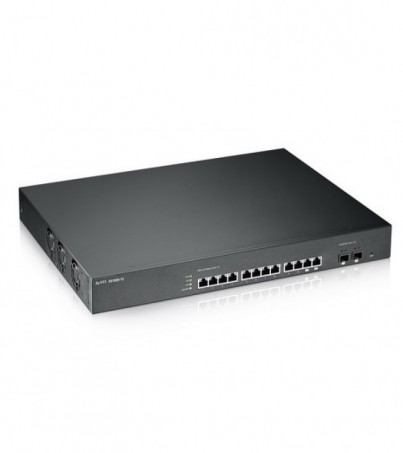

ZyXel XS1920-12 12-port 10GbE Smart Managed Switch

GENERAL

• Enclosure Type

  Rack-mountable

• Subtype

  10 Gigabit Ethernet

• Ports

  10 x 10GBase-T + 2 x combo 10 Gigabit SFP+

• Performance

  Switching capacity: 240 Gbps
  Forwarding performance: 178.6 Mpps

• Authentication Method

  RADIUS, TACACS+

• MAC Address Table Size

  16K entries

• Authentication Method

  RADIUS, TACACS+

• Status Indicators

  Power, system, link/activity

• Encryption Algorithm

  SSL

• Routing Protocol

  IGMPv2, IGMP, IGMPv3, policy-based routing (PBR)

• Manufacturer

  ZyXEL Communications Corp.

NETWORKING

• MAC Address Table Size

  16K entries

• Subcategory

  network hubs and switches

• Subtype

  10 Gigabit Ethernet

• Form Factor

  rack-mountable

• Type

  Switch

• Stackable

  stackable

• Features

  2MB packet buffer, ARP inspection, Dynamic VLAN Support (GVRP), Energy Efficient Ethernet, ErrDisable Recovery, IGMP filtering, IGMP proxy, IGMP snooping, IGMP throttling, IP address filtering, IP source guard, IP-MAC binding, Access Control List (ACL) support, IPv6 support, LLDP support, Link Aggregation Control Protocol (LACP), MAC address filtering, MLD snooping, Multicast Storm Control, Multicast VLAN Registration (MVR), Multiple Spanning Tree Protocol (MSTP) support, NTP server, Neighbor Discovery Protocol (NDP), Broadcast Storm Control, Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, SNMP trap, Spanning Tree Protocol (STP) support, Strict Priority Queuing (SPQ), Syslog support, Unicast Storm Control, Weighted Fair Queuing (WFQ), Weighted Round Robin (WRR) queuing, CPU protection, ZyXEL One Network (ZON), ZyXEL iStacking Technology, dual firmware images, flow control, loop prevention, policy based rate limiting, port isolation, port mirroring, tagged VLAN, Class of Service (CoS), DHCP client, DHCP relay, DHCP snooping, DiffServ support

• Compliant Standards

  IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad (LACP)

• Ports Qty

  12

• Manageable

  Yes

• Routing Protocol

  IGMP, IGMPv2, IGMPv3, policy-based routing (PBR)

• Remote Management Protocol

  CLI, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3

POWER DEVICE

• Nominal Voltage

  AC 120/230 V

• Frequency Required

  50/60 Hz

• Power Consumption Operational

  95.6 Watt

• Type

  internal power supply

MISCELLANEOUS

• Rack Mounting Kit

  included

• Encryption Algorithm

  SSL

• MTBF

  839624 sec

• MTBF

  839,624.71 hours

INTERFACE PROVIDED

• Qty

  12, 2

ENVIRONMENTAL PARAMETERS

• Min Storage Temperature

  -40 °F

• Max Storage Temperature

  158 °F

• Min Operating Temperature

  32 °F

• Max Operating Temperature

  122 °F

• Humidity Range Operating

  10 - 90% (non-condensing)

HEADER

• Brand

  ZyXEL

• Product Line

  Zyxel

• Model

  XS1920-12

• Packaged Quantity

  1

• Compatibility

  PC

DIMENSIONS & WEIGHT

• Width

  17.3 in

• Depth

  13 in

• Height

  1.8 in

• Weight

  9.27 lbs

PORTS

• Type

  10GBase-T

• Qty

  10

PERFORMANCE

• Type

  forwarding performance, switching capacity

• Value

  178.6 Mpps, 240 Gbps
