สินค้าเลขที่. 13035 คัดลอก URL

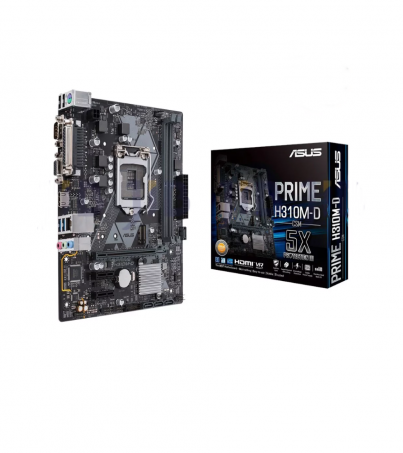

MAINBOARD ASUS PRIME H310M-D/CSM (1151V2)
ฟรี
ได้รับภายใน : 31 มี.ค. ~ 02 เม.ย., 2024
สามารถเก็บเงินปลายทางได้
การรับประกัน
การรับประกัน : มีการรับประกัน 3 ปี
คืนสินค้าภายใน 15 วัน
สิ่งที่ให้มาในกล่อง | MAINBOARD ASUS PRIME H310M-D/CSM (1151V2) | MODEL | |
Chipset | Intel H310 | Form Factor | Micro-ATX |
Mainboard Brand | ASUS | การรับประกัน | รับประกันโดยร้านผู้จัดจำหน่าย |
ระยะเวลาการรับประกัน | 3 years |
Model
Brand
ASUS
Model
PRIME H310M-D/CSM
Support CPU
Socket
1151 Coffee Lake 300 series
CPU Generation
8th Generation Intel Core Processors
รองรับการกินไฟ CPU
-
Chipset
H310
CPU Series
8th Generation Core™ Processors , Intel Celeron , Intel Core i3 , Intel Core i5 , Intel Core i7 , Intel Pentium
Memory
จำนวน Slot แรม
2
ชนิดของแรม
DDR4
ความจุแรมสูงสุด
32 GB
Ram Bus
2133 , 2400 , 2666
Onboard
VGA Onboard
Integrated Graphics Processor
Audio Onboard
Realtek® ALC887
รองรับระบบเสียง
8-Channel High Definition Audio
Storage Connector
Port SATA 2
- Port
Port SATA 3
4 Port
รองรับฟังก์ชั่น RAID
-
Port M.2 SSD
1 ( PCIe & SATA ) Port
Expansion Slots
รายละเอียดอื่นๆ
Slot
1 x PCIe 3.0 x16 Slot , 2 x PCIe 2.0 x1 Slots
Network
Chipset LAN
Realtek® RTL8111H
ความเร็ว LAN
10/100/1000 Mbps
Wi-Fi
-
Rear Panel Ports
Port USB 2.0
2 Port
Port USB 3.0
- Port
Port USB 3.1
2
Serial Port
1 Port
Dsub Output
1 Port
DVI Output
- Port
HDMI Output
1 Port
Display Port
- Port
Audio Output
3 x Audio jack Port
Port PS2
1
Option Port
1 x LPT port
Physical Spec
Form Factor
Micro-ATX
ช่องเสียบไฟ
24+4 Pin
ขนาด
22.6 x 18.5 cm
Warranty
การรับประกัน
3 Years
