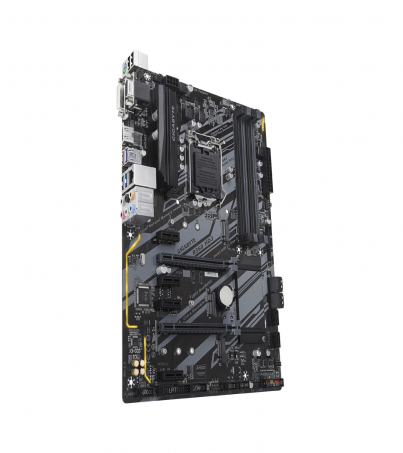

(1151V2) GIGABYTE B360 HD3

17%
3,490.00
฿ 2,920.00

ฟรี

ได้รับภายใน : 31 มี.ค. ~ 02 เม.ย., 2024

สามารถเก็บเงินปลายทางได้

การรับประกัน

การรับประกัน : มีการรับประกัน 3 ปี

คืนสินค้าภายใน 15 วัน

คุณสมบัติทั่วไป
คำอธิบายสินค้า
รายละเอียดสินค้า
คะแนนและรีวิว
Q & A
คุณสมบัติทั่วไป
สิ่งที่ให้มาในกล่อง MODEL
Chipset Intel B360 Form Factor ATX
Mainboard Brand GIGABYTE การรับประกัน รับประกันโดยร้านผู้จัดจำหน่าย
ระยะเวลาการรับประกัน 3 years
คำอธิบายสินค้า

Supports 8th Gen Intel® Core™ Processors

Dual Channel Non-ECC Unbuffered DDR4

New Hybrid Digital PWM Design

Intel® CNVi 802.11ac Wave2 2T2R WIFI Upgradable

High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

Dual Ultra-Fast M.2 with PCIe Gen3 X4/X2 & SATA interface

RGB FUSION supports RGB LED strips in 7 colors

Intel® Native USB 3.1 Gen2 USB Type-A

GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

CEC 2019 Ready, Save the Power as Easy as One Click

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

Anti-Sulfur Resistors Design

Ultra DurableTM 25KV ESD and 15KV Surge LAN Protection

Intel® Optane™ Memory Ready

Lightning-Fast Intel® Thunderbolt™ 3 AIC Support

รายละเอียดสินค้า

CPU

Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package

L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

Intel® B360 Express Chipset

Memory

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

Dual channel memory architecture

Support for DDR4 2666/2400/2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.

(Please refer "Memory Support List" for more information.)

Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.2.

Support for up to 3 displays at the same time

Maximum shared memory of 1 GB

Audio

Realtek® ALC892 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

* The PCIEX4 slot shares bandwidth with the PCIEX1_2, PCIEX1_3, and PCIEX1_4 slots. When the PCIEX1_2, PCIEX1_3, or PCIEX1_4 slot is populated, the PCIEX4 slot operates at up to x1 mode.

4 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)

* The CNVi connector shares bandwidth with the F_USB2 header. When a WIFI module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable.

Storage Interface Chipset:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_32G)

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)

6 x SATA 6Gb/s connectors

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready

(Note) Supported by the M2A_32G connector only.

Multi-Graphics Technology

Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

USB Chipset:

1 x USB 3.1 Gen 2 Type-A port (red) on the back panel

5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

* The CNVi connector shares bandwidth with the F_USB2 header. When a Wi-Fi module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable.

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x RGB LED strip header

6 x SATA 6Gb/s connectors

2 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.1 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Thunderbolt™ add-in card connector

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x parallel port header

1 x serial port header

1 x Clear CMOS jumper

Back Panel Connectors

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x DVI-D port

1 x HDMI port

1 x USB 3.1 Gen 2 Type-A port (red)

3 x USB 3.1 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

6 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

2 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

3D OSD

@BIOS

AutoGreen

Cloud Station

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

Platform Power Management

RGB Fusion

Smart Backup

Smart Keyboard

Smart TimeLock

Smart HUD

System Information Viewer

USB Blocker

V-Tuner

Support for Q-Flash

Support for Xpress Install

Bundle Software

Norton® Internet Security (OEM version)

Realtek 8118 Gaming LAN bandwidth Control Utility

Operating System

Support for Windows 10 64-bit

Form Factor

ATX Form Factor; 30.5cm x 22.5cm

Remark

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
