GIGABYTE GA-H61M-DS2 R2 (1155)

6%
2,690.00
฿ 2,540.00

ฟรี

ได้รับภายใน : 15 ก.ค. ~ 17 ก.ค., 2025

สามารถเก็บเงินปลายทางได้

การรับประกัน

การรับประกัน : มีการรับประกัน 3 ปี

คืนสินค้าภายใน 15 วัน

คุณสมบัติทั่วไป
คำอธิบายสินค้า
รายละเอียดสินค้า
คะแนนและรีวิว
Q & A
คุณสมบัติทั่วไป
สิ่งที่ให้มาในกล่อง GIGABYTE GA-H61M-DS2 R2 (1155) MODEL
Chipset Intel B360 Form Factor Micro-ATX
Mainboard Brand GIGABYTE การรับประกัน รับประกันโดยร้านผู้จัดจำหน่าย
ระยะเวลาการรับประกัน 3 years
คำอธิบายสินค้า
  • All new design of Ultra Durable 4 classic
  • Supports 3rd Gen. Intel® 22nm CPUs and 2nd Gen. Intel® Core™ CPUs (LGA1155 socket)
  • Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch
  • Supports 3rd generation PCI-Express interface
  • Industry's Leading All Solid Capacitor Design
  • Enhanced Intel HD Graphics 2000/3000 integrated with the processor
  • Innovative Smart 6 technology for smarter PC management
  • Dual UEFI BIOS protection with 3TB+ HDD boot up capability
รายละเอียดสินค้า
BrandGIGABYTE
ModelGA-H61M-DS2 (Rev. 5.0)
CPU SupportSupport for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
L3 cache varies with CPU
Socket1155
Memory Support2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1333/1066/800 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support XMP memory, you must install an Intel® 22nm (Ivy Bridge) CPU.
ChipsetIntel H61
Graphics1 x D-Sub port
AudioRealtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Expansion Slots1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
* Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
USB8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x speaker header
2 x USB 2.0/1.1 headers
1 x chassis intrusion header
1 x Clear CMOS jumper

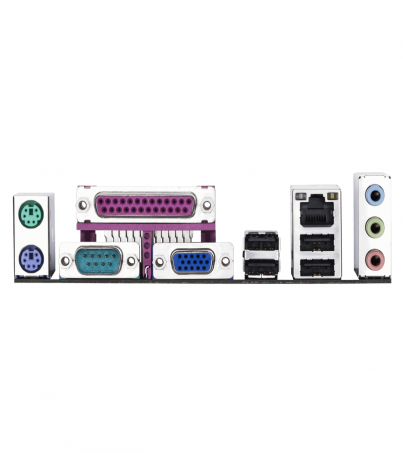

Back Panel Connectors1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x parallel port
1 x serial port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Microphone)
LANRealtek® GbE LAN chip (10/100/1000 Mbit)
Form FactorMicro ATX Form Factor; 22.6cm x 17.4cm
H/W MONITORINGSystem voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS2 x 32 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Bundle SoftwareNorton Internet Security (OEM version)
Operating System SupportSupport for Windows 8.1/8/7/Vista/XP
