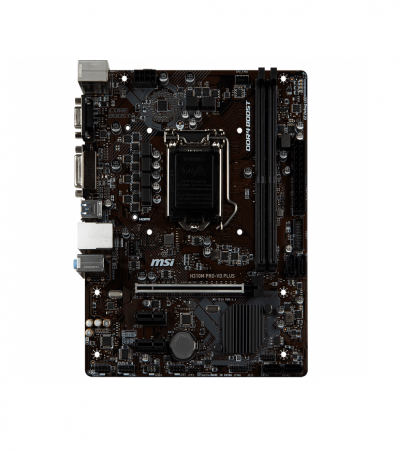

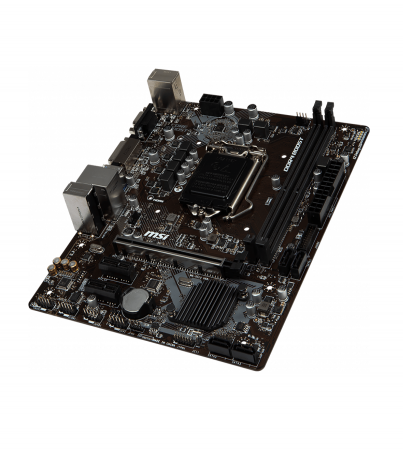

MSI H310M PRO-VD PLUS(H310M-PRO-VD-PLUS)

PROCESSOR

Supports 9^th / 8^th Gen Intel^® Core™ / Pentium^® Gold / Celeron^® processors for LGA 1151 socket

CHIPSET

Intel^® H310 Chipset¹

1. This chipset is ME11 firmware based and doesn't feature SDA3.0.

MEMORY

• 2 x DDR4 memory slots, support up to 32GB
• Supports DDR4 2666/ 2400/ 2133 MHz
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

SLOTS

• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 2.0 x1 slots

ONBOARD GRAPHICS

• 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

*No Display support when using the Processor model with suffix “F”

STORAGE

Intel^® H310 Chipset

• 4 x SATA 6Gb/s ports

USB

Intel^® H310 Chipset

• 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
• 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)

AUDIO

Realtek^® ALC887 Codec

• 7.1-Channel High Definition Audio

LAN

• 1 x RTL8111H Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin system fan connector
• 2 x Front panel connectors
• 1 x Front panel audio connector
• 1 x Serial port connector
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper
• 4 x EZ Debug LED

BACK PANEL PORTS

1. PS/2 Combo Port
2. VGA Port
3. DVI-D Port
4. USB 3.1 Gen1
5. LAN Port
6. HD Audio Connectors
7. USB 2.0 Port
8. USB 2.0 Port

DIMENSIONS

• 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
• m-ATX Form Factor

MOUNTING

6 mounting holes

OPERATING SYSTEM

Support for Windows^® 10 64-bit
