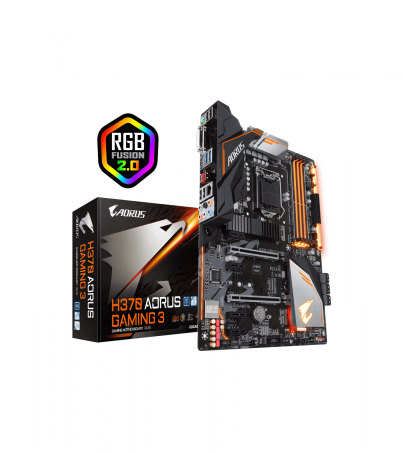

Gigabyte H370 AORUS GAMING 3(GA_H370AORUS_GAMING3)
ฟรี
ได้รับภายใน : 31 มี.ค. ~ 02 เม.ย., 2024
สามารถเก็บเงินปลายทางได้
การรับประกัน
การรับประกัน : มีการรับประกัน 1 ปี
คืนสินค้าภายใน 15 วัน
สิ่งที่ให้มาในกล่อง | MODEL | ||
Chipset | Intel H370 | Form Factor | ATX |
Mainboard Brand | GIGABYTE | การรับประกัน | รับประกันโดยร้านผู้จัดจำหน่าย |
ระยะเวลาการรับประกัน | 1 year |
- Supports 9th and 8th Gen Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4
- New Hybrid Digital PWM Design
- Intel® CNVi 802.11ac Wave2 2T2R WIFI Upgradable
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- Immersive Gaming ViBes with ALC1220-VB and WIMA audio capacitors
- Dual Ultra-Fast M.2 with PCIe Gen3 X4/X2 (1 with Thermal Guard) & SATA interface
- RGB FUSION 2.0 with Multi-Zone Digital LED Light Show design, support digital LED & RGB LED strips
- Intel® Native USB 3.1 Gen2 with USB Type-C™ and Type-A
- Intel® USB 3.1 Gen1 USB Type-C™
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- CEC 2019 Ready, Save the Power as Easy as One Click
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Swappable Overlay for Accent LED
- Intel® Optane™ Memory Ready
Processor
- Support for 9th and 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium®processors/Intel® Celeron® processors in the LGA1151 package
- L3 cache varies with CPU
Chipset
- Intel® H370 Express Chipset
Memory
- 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
- Dual channel memory architecture
- Support for DDR4 2666/2400/2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2. - 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
Actual support may vary by CPU- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Audio
- Realtek® ALC1220-VB codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
LAN
- Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. - 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 4 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.) - 1 x M.2 Socket 1 connector for an Intel® CNVi or a PCIe wireless module (CNVI)
* The CNVi connector shares bandwidth with the F_USB2 header. When a WIFI module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable.
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
IDE ATA
Chipset:- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_32G)
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Multi-Graphics Technology
- Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
USB
Chipset:- 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header
- 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
- 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
- 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 2 x system fan headers
- 1 x system fan/water cooling pump header
- 2 x digital LED strip headers
- 2 x digital LED strip power select jumpers
- 2 x RGB (RGBW) LED strip headers
- 6 x SATA 6Gb/s connectors
- 2 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
- 1 x USB 3.1 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x serial port header
- 1 x S/PDIF Out header
- 1 x Thunderbolt™ add-in card connector
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
- 1 x Clear CMOS jumper
Rear Panel I/O
- 1 x PS/2 keyboard/mouse port
- 4 x USB 2.0/1.1 ports
- 1 x DVI-D port
- 1 x HDMI port
- 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
- 1 x USB 3.1 Gen 2 Type-A port (red)
- 2 x USB 3.1 Gen 1 ports
- 1 x RJ-45 port
- 6 x audio jacks
I/O
- iTE® I/O Controller Chip
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
- 2 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS™
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner - Support for Q-Flash
- Support for Xpress Install
- Support for APP Center
Bundle Software
- Norton® Internet Security (OEM version)
- cFosSpeed
Operating System
- Support for Windows 10 64-bit
Form Factor
- ATX Form Factor; 30.5cm x 24.4cm
