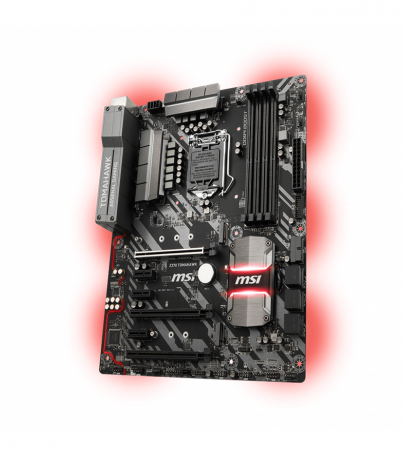

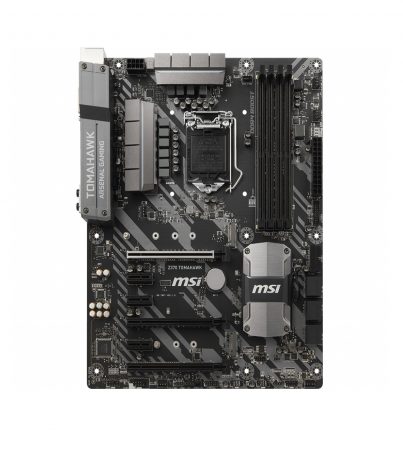

MSI Z370 TOMAHAWK LGA 1151(Z370-TOMAHAWK)

PROCESSOR

Supports 9^th / 8^th Gen Intel^® Core™ / Pentium^® Gold / Celeron^® processors for LGA 1151 socket

CHIPSET

Intel^® Z370 Chipset

MEMORY

• 4 x DDR4 memory slots, support up to 64GB
• Supports DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz Memory
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

SLOTS

• 3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes)¹
• 3 x PCIe 3.0 x1 slots²

1. The PCI_E4 slot will be unavailable when an M.2 PCIe SSD module has been installed in the M.2_2 slot.
2. The PCI_E2 slot will be unavailable when an expansion card has been installed in the PCI_E3 slot.

ONBOARD GRAPHICS

• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

*No Display support when using the Processor model with suffix “F”

MULTI-GPU

• Supports 2-Way AMD^® CrossFire™ Technology

STORAGE

Intel^® Z370 Chipset

• 6 x SATA 6Gb/s ports¹
• 2 x M.2 slots (Key M)
  • Support up to PCIe 3.0 x4 and SATA 6Gb/s
  • Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card²
  • M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
  • M2_2 slot supports 2242/ 2260 /2280 storage devices²
  • Intel^® Optane™ Memory Ready for all M.2³
• Supports Intel^® Smart Response Technology for Intel Core™ processors

1. M.2 and SATA ports maximum support 2x M.2 PCIe SSDs + 6x SATA HDDs. Please refer to manual for more detail.
2. The Turbo U.2 Host Card is not included, please purchase separately.
3. Please refer to manual for Intel^® Optane™ Memory Configuration.

RAID

Intel^® Z370 Chipset

• Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID1 for M.2 PCIe storage devices¹

1. M.2 PCIe RAID volume can be created with M.2/Optane Genie, Please refer to manual for more detail.

USB

ASMedia^® ASM3142 Chipset

• 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
• 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

Intel^® Z270 Chipset

• 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
• 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AUDIO

Realtek^® ALC892 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1 x Intel^® I219-V Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water pump fan connector
• 4 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x RGB LED connector
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Serial port connector
• 1 x Clear CMOS jumper

BACK PANEL PORTS

1. PS/2 GAMING Device Port
2. USB 3.1 Gen1
3. Intel^® Gigabit LAN Port
4. Golden Audio Connectors
5. USB 2.0 Ports
6. DVI-D Port
7. USB 3.1 Gen2
8. HDMI
9. Optical S/PDIF-Out

DIMENSIONS

• 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
• ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

Support for Windows^® 10 64-bit
