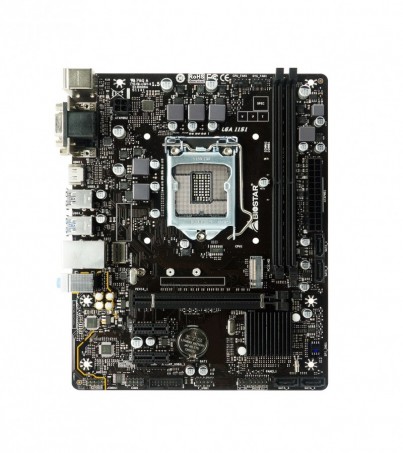

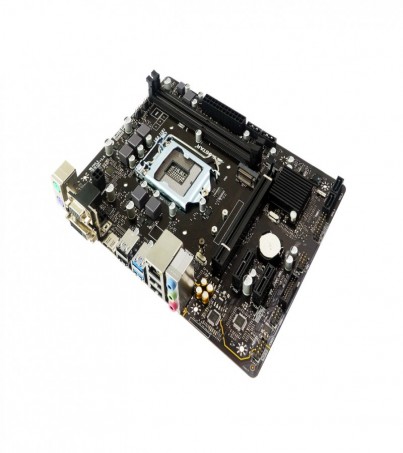

(1151V2) BIOSTAR H310MHD PRO2

Brand Biostar

Model H310MHD PRO2

CPU Support 8th Gen Intel® Core™ i7 LGA 1151 Processor

8th Gen Intel® Core™ i5 LGA 1151 Processor

8th Gen Intel® Core™ i3 LGA 1151 Processor

8th Gen Intel® Pentium® LGA 1151 Processor

8th Gen Intel® Celeron® LGA 1151 Processor

Maximum CPU TDP (Thermal Design Power) : 95Watt

Socket 1151 V2

Memory Support Support Dual Channel DDR4 1866/2133/2400/2666 MHz

2 x DDR4 DIMM Memory Slot

Max. Supports up to 32GB Memory

Each DIMM supports non-ECC 4/8/16GB DDR4 module

Chipset Intel H310

Graphics By CPU model

Supports DX12

Supports HDCP

Audio Realtek ALC887 8-Channel HD Audio

Support HD Audio

Expansion Slots 1 x PCI-E 3.0 x16 Slot

2 x PCI-E 2.0 x1 Slots

Storage 4 x SATA3 Connectors

1 x M.2 Key M Connector (10Gb/s) : Supports PCI-E SSD

USB 4 x USB 3.1 Gen1 Ports (2 on rear I/Os and 2 via internal header)

6 x USB 2.0 Ports (4 on rear I/Os and 2 via internal header)

Internal I/O Connectors 1 x USB 3.1 Gen1 Header (each header support 2 USB 3.1(Gen1) ports)

1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

4 x SATA3 6Gb/s Connectors

1 x Front Audio Header

1 x Front Panel Header

1 x CPU Fan Connector

1 x System Fan Connector

1 x 4-Pin Power Connector

1 x 24-Pin Power Connector

1 x Clear CMOS Header

1 x COM Port Header

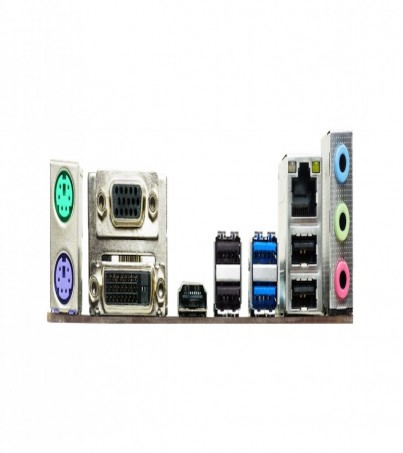

Back Panel Connectors 1 x PS/2 Mouse

1 x PS/2 Keyboard

2 x USB 3.1 Gen1 Ports

4 x USB 2.0 Ports

1 x HDMI Connector, resoltuion up to 4096*2160@24Hz

1 x DVI-D Connector, resolution up to 1920*1200@60Hz

1 x VGA Port, resolution up to 1920*1200@60Hz

1 x LAN port

3 x Audio Jacks

LAN Realtek RTL8111H - 10/100/1000Mb/s Controller

Form Factor Micro ATX Form Factor Dimension: 22.8 cm x 17.7 cm ( W x L )

H/W MONITORING CPU / System Temperature Monitoring

CPU / System Fan Monitoring

Smart / Manual CPU Fan Control

System Voltage Monitoring

Operating System Support Support Windows 10(x64) / Windows 7
