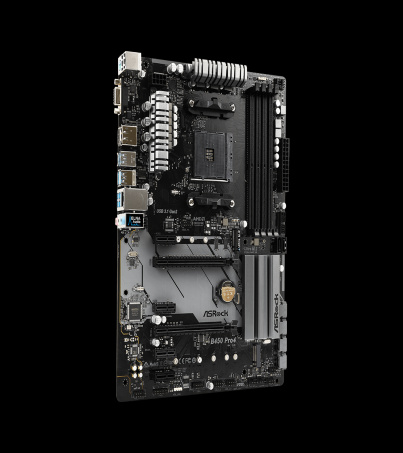

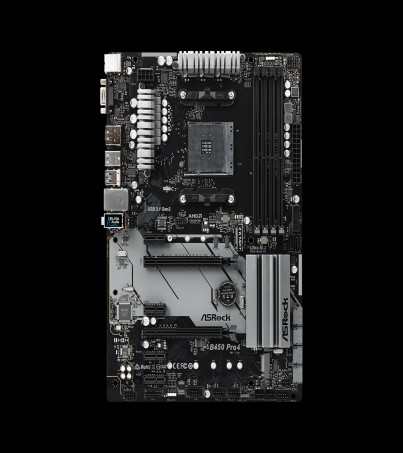

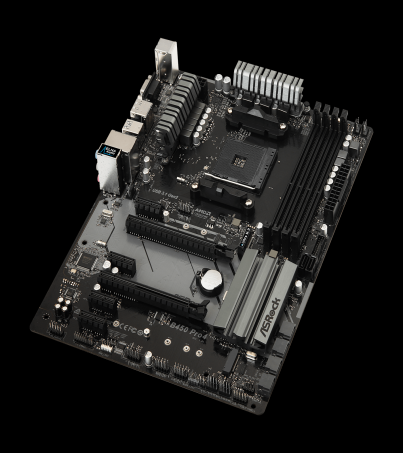

(AM4) ASROCK B450 PRO4

Name: (AM4) ASROCK B450 PRO4
Brand: Asrock
SKU: supt16860-
Price: 3190 THB
Availability: InStock

3,390.00

฿ 3,190.00

ฟรี

ได้รับภายใน : 28 เม.ย. ~ 30 เม.ย., 2024

สามารถเก็บเงินปลายทางได้

การรับประกัน

การรับประกัน : มีการรับประกัน 3 ปี

คืนสินค้าภายใน 15 วัน

คุณสมบัติทั่วไป

คำอธิบายสินค้า

รายละเอียดสินค้า

คะแนนและรีวิว

Q & A

คุณสมบัติทั่วไป

สิ่งที่ให้มาในกล่อง		MODEL
Chipset	AMD B450	Form Factor	ATX
Mainboard Brand	ASROCK	การรับประกัน	รับประกันโดยร้านผู้จัดจำหน่าย
ระยะเวลาการรับประกัน	3 years

คำอธิบายสินค้า

AMD AM4 Socket
Supports DDR4 3200+ (OC)
2 PCIe 3.0 x16, 4 PCIe 2.0 x1
AMD Quad CrossFireX™
Graphics Output: HDMI, Display Port, D-Sub
7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
2 USB 3.1 Gen2 (Rear Type A+C)
6 USB 3.1 (2 Front, 4 Rear)
Realtek Gigabit LAN

รายละเอียดสินค้า

Brand ASROCK
Model B450 PRO4
CPU Support AMD AM4 Socket
Digi Power design
9 Power Phase design
Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)
Socket AM4
Memory Support Dual Channel DDR4 Memory Technology
4 x DDR4 DIMM Slots
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory
AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory
AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 non-ECC, un-buffered memory
Max. capacity of system memory: 64GB**
15μ Gold Contact in DIMM Slots
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
Chipset AMD B450
Graphics Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
DirectX 12, Pixel Shader 5.0
Max. shared memory 2GB
Three graphics output options: D-Sub, HDMI and DisplayPort 1.2
Supports Triple Monitor
Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports HDCP with HDMI and DisplayPort 1.2 Ports
Supports 4K Ultra HD (UHD) playback with HDMI and DisplayPort 1.2 Ports
*Actual support may vary by CPU
Audio 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
Premium Blu-ray Audio support
Supports Surge Protection
ELNA Audio Caps
*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Expansion Slots AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
- 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*
AMD Ryzen series CPUs (Raven Ridge)
- 2 x PCI Express 3.0 x16 Slots (PCIE2: x8 mode; PCIE4: x4 mode)*
- 4 x PCI Express 2.0 x1 Slots
- Supports AMD Quad CrossFireX™ and CrossFireX™**
*Supports NVMe SSD as boot disks
If M2_1 is occupied, PCIE4 will be disabled.
**This feature is only supported with Ryzen Series CPUs (Summit Ridge, Pinnacle Ridge and Raven Ridge).
Storage 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)**
1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**
*M2_2, SATA3_3 and SATA3_4 share lanes. If either one of them is in use, the others will be disabled.
**If M2_1 is occupied, PCIE4 will be disabled.
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Internal I/O Connectors 1 x COM Port Header
1 x TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
1 x Addressable LED Header**
1 x AMD Fan LED Header***
1 x CPU Fan Connector (4-pin)****
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
*Supports in total up to 12V/3A, 36W LED Strip
**Supports in total up to 5V/3A, 15W LED Strip
***The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
*****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

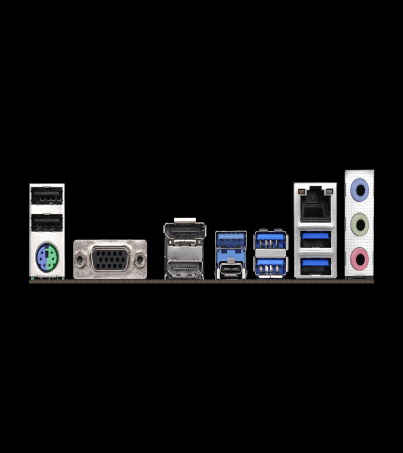

Back Panel Connectors 1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.2
2 x USB 2.0 Ports (Supports ESD Protection)
1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
LAN PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111H
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Form Factor ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
Solid Capacitor design
H/W Monitoring Temperature Sensing: CPU, MB
Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
Voltage monitoring: +12V, +5V, +3.3V, Vcore
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support
Supports "Plug and Play"
ACPI 5.1 compliance wake up events
Supports jumperfree
SMBIOS 2.3 support
DRAM Voltage multi-adjustment
Special Features ASRock USB 3.1 Gen2
- ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- Premium Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
ASRock Ultra M.2 (PCIe Gen3 x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
Operating System Support Microsoft® Windows® 10 64-bit
