(1151V2) MSI Z370 SLI PLUS

Name: (1151V2) MSI Z370 SLI PLUS
Brand: MSI
SKU: supt16893-
Price: 4780 THB
Availability: InStock

5,190.00

฿ 4,780.00

ฟรี

ได้รับภายใน : 26 เม.ย. ~ 28 เม.ย., 2024

สามารถเก็บเงินปลายทางได้

การรับประกัน

การรับประกัน : มีการรับประกัน 3 ปี

คืนสินค้าภายใน 15 วัน

คุณสมบัติทั่วไป

คำอธิบายสินค้า

รายละเอียดสินค้า

คะแนนและรีวิว

Q & A

คุณสมบัติทั่วไป

สิ่งที่ให้มาในกล่อง		MODEL
Chipset	Intel Z370	Form Factor	ATX
Mainboard Brand	MSI	การรับประกัน	รับประกันโดยร้านผู้จัดจำหน่าย
ระยะเวลาการรับประกัน	3 years

คำอธิบายสินค้า

Supports 8th Gen Intel® CoreTM / Pentium® Celeron® processors for LGA 1151 socket
Supports DDR4 Memory, up to 4000+(OC) MHz
DDR4 Boost: Advanced technology provided by MSI OC lab to ensure maximum compatibility for overclocking performance.
AUDIO BOOST 4: Reward your ears with studio grade sound quality for the most immersive audio experience
Mystic Light and Mystic Light Sync: Personalize your PC with 16.8 million colors / 17 effects controlled in one click with the Mystic Light APP or a mobile device.
MULTI-GPU: With Steel Armor PCI-E slots. Supports NVIDIA 2-Way SLI™ & AMD 3-Way Crossfire™
Professional IO cover & heatsink： Stunning looks, protecting the I/O ports
EZ Debug LED: Easiest way to troubleshoot
Twin Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready
Lightning USB: Double bandwidth, supports USB 3.1 Gen2 Type A + Type C
PCI-E Steel Armor：Protecting VGA cards against bending and EMI
X-Boost: Great tool to boost your USB & Storage performance
Double ESD Protection: Double layer grounding motherboard mounting holes
Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
VR Ready: Best virtual reality game experience without latency, reduces motion sickness

รายละเอียดสินค้า

Brand MSI
Model Z370 SLI PLUS
CPU Support Supports 8th Gen Intel® Core™ processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
Socket 1151 V2
Memory Support 4 x DDR4 memory slots, support up to 64GB
- Supports 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133 MHz*
Dual channel memory architecture
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)**
Chipset Intel Z370
Graphics 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
Multi Graphic Support Supports 2-Way NVIDIA® SLI™ Technology
Supports 3-Way AMD® CrossFire™ Technology
Audio Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
Expansion Slots 3 x PCIe 3.0 x16 slots
3 x PCIe 3.0 x1 slots
Storage Intel® Z370 Chipset
6 x SATA 6Gb/s ports*
2 x M.2 slots (Key M)
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
- Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card**
- M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
- M2_2 slot supports 2242/ 2260 /2280 storage devices
- Supports Intel® Optane™ Memory Ready for all M.2 slots
* The SATA1, SATA5 and SATA6 ports will become unavailable with some conditions of M.2 devices. Please refer the manual for M.2 & SATA combination table .
** The Turbo U.2 Host Card is not included, please purchase separately.
USB ASMedia® ASM3142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
Intel® Z370 Chipset
- 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water pump fan connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x RGB LED connector
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Clear CMOS jumper

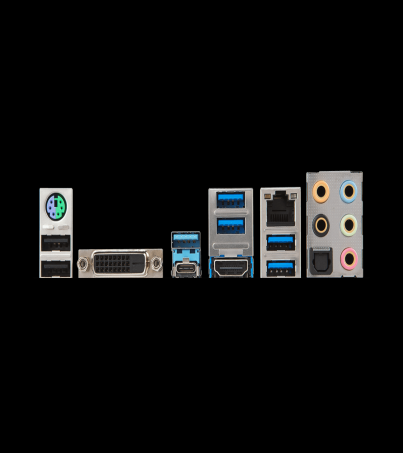

Back Panel Connectors 1 x PS/2 mouse & keyboard combo port
2 x USB 2.0 ports
1 x DVI-D port
1 x USB 3.1 Gen2 Type-A port
1 x USB 3.1 Gen2 Type-C port
4 x USB 3.1 Gen1 Type-A ports
1 x HDMI™ port
1 x LAN (RJ45) port
1 x Optical S/PDIF out connector
5 x audio jacks
LAN 1 x Intel® I219-V Gigabit LAN controller
Form Factor 12.0 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor
