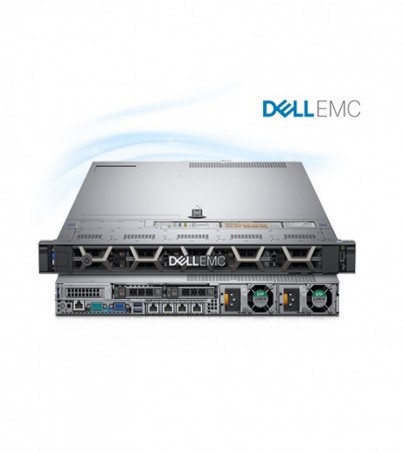

Dell PowerEdge R640 Silver 4110 (SNSR6404110)

ITEM DESCRIPTION
Processor
- Up to two Intel® Xeon® SP, up to 28 cores per processor

Memory
- 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 1.5TB max
- Up to 12 NVDIMM, 192 GB Max
- Supports registered ECC DDR4 DIMMs only

Storage controllers
- PERC H730P RAID Controller, 2Gb NV Cache, Minicard Support RAID 0, 1, 5, 6, 10, 50, 60

Power supplies
- Dual, Hot-plug, Redundant Power Supply (1+1), 750W

Dimensions
- Form factor: Rack (1U)
- Chassis depth: 705.05 mm

Embedded management
IPMI 2.0 compliant
iDRAC9 with Lifecycle Controller (Express, Enterprise)
Quick Sync 2 wireless module optional

OpenManage™ Software
- OpenManage Enterprise
- OpenManage Essentials
- OpenManage Mobile
- OpenManage Power Center

Integrations and connections
- Integrations: Microsoft® System Center, VMware® vCenter™, BMC Software
- Connections: Nagios & Nagios XI, Oracle Enterprise Manager, HP Operations Manager, IBM Tivoli Netcool/OMNIbus, IBM Tivoli® Network Manager, CA Network and Systems Management

Security
- TPM 1.2/2.0 optional
- Cryptographically signed firmware
- Secure Boot
- System Lockdown
- Secure erase

I/O & Ports
- Broadcom 57416 2 Port 10Gb Base-T + 5720 2 Port 1Gb Base-T, rNDC
- Front ports: Video, 1 x USB 2.0, available USB 3.0, dedicated IDRAC Direct USB
- Rear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network port
- Video card: VGA, NVIDIA NVS310 available as PCIe card
- Up to 3 x Gen3 slots, all x16

Supported operating systems
- Canonical® Ubuntu® LTS
- Citrix® XenServer®
- Microsoft Windows Server® with Hyper-V
- Red Hat® Enterprise Linux
- SUSE® Linux Enterprise Server
- VMware® ESXi
