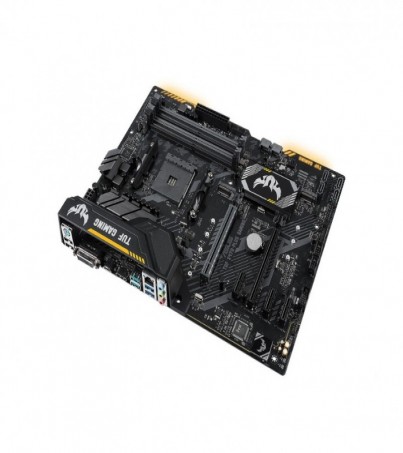

(AM4) ASUS TUF X470 PLUS GAMING

24%
6,890.00
฿ 5,250.00

ฟรี

ได้รับภายใน : 31 มี.ค. ~ 02 เม.ย., 2024

สามารถเก็บเงินปลายทางได้

การรับประกัน

การรับประกัน : มีการรับประกัน 3 ปี

คืนสินค้าภายใน 15 วัน

คุณสมบัติทั่วไป
คำอธิบายสินค้า
รายละเอียดสินค้า
คะแนนและรีวิว
Q & A
คุณสมบัติทั่วไป
สิ่งที่ให้มาในกล่อง MODEL
Chipset AMD X470 Form Factor Micro-ATX
Mainboard Brand ASUS การรับประกัน รับประกันโดยร้านผู้จัดจำหน่าย
ระยะเวลาการรับประกัน 3 years
คำอธิบายสินค้า

  • by ASUS

  • GPU Temperature Sensing & Fan Xpert 4 Core : มั่นใจได้ว่าพัดลมที่ถูกติดตั้งจะทำงานได้อย่างเต็มประสิทธิภาพและให้เสียงรบกวนที่ต่ำ
  • TUF Protection : มาพร้อมกับ ASUS SafeSlot , ESD Guards ที่ช่วยป้องกันไฟกระชากและการจ่ายกระแสไฟฟ้าที่เกินกว่าความจำเป็น
  • Digi + VRM , I/O : ถูกออกแบบมาให้มีความทนทานและรองรับการใช้งานในระยะยาว
  • Military-grade TUF Components : TUF LANGuard, TUF Chokes, TUF Capacitors,และ TUF MOSFETs ใช้เทคโนโลยีทางการผลิตเทียบเท่ากับอุสหกรรมทางทหารที่ให้ความทนทานสูง
  • Exclusive DTS® Custom audio : เอกลักษณ์ทางด้านเสียงที่ถูกออกแบบมาเฉพาะ TUF ซีรี่ที่พร้อมจะส่งมอบประสบการณ์ทางด้านเสียงที่ยอดเยี่ยม
  • ASUS AURA SYNC : ปรับแต่งแสงไฟ RGB ให้สอดคล้องกับอุปกรณ์ที่รองรับโดยผ่านโปรแกรมที่ชื่อว่า ASUS AURA SYNC ที่จะช่วยซิงค์แสงไฟให้กับทุกๆอุปกรณ์ที่รองรับ
รายละเอียดสินค้า
  • Brand ASUS
  • Model TUF X470-PLUS GAMING
  • CPU Support AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors
  • Supports CPU up to 8 cores
  • Socket AMD AM4
  • Memory Support AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
  • 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

  • AMD 7th Generation A-Series/Athlon X4 Processors
  • 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Un-buffered Memory
  • Dual Channel Memory Architecture
  • ECC Memory (ECC model) support varies by CPU.
  • Chipset AMD X470
  • Graphics Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU
  • Multi-VGA output support : HDMI/DVI-D ports
  • - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  • - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  • Maximum shared memory of 2048 MB (for iGPU exclusively)
  • Multi Graphic Support Supports AMD CrossFireX™ Technology
  • Audio Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC
  • Audio Feature :
  • - Exclusive DTS Custom for GAMING Headsets.
  • - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  • - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  • - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  • - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
  • Expansion Slots AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
  • 1 x PCIe 3.0/2.0 x16 (x16 mode)
  • AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors
  • 1 x PCIe 3.0/2.0 x16 (x8 mode)
  • AMD X470 chipset
  • 1 x PCIe 2.0 x16 (max at x4 mode)
  • 3 x PCIe 2.0 x1
  • Storage AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • AMD 7th Generation A-Series/Athlon X4 Processors :
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
  • AMD X470 chipset :
  • 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)
  • 6 x SATA 6Gb/s port(s)
  • Support Raid 0, 1, 10
  • USB AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors :
  • 2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)

  • AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors :
  • 1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM)

  • AMD X470 chipset :
  • 2 x USB 3.1 Gen 2 port(s) (2 at back panel, )

  • AMD X470 chipset :
  • 4 x USB 3.1 Gen 1 port(s) (4 at mid-board)

  • AMD X470 chipset :
  • 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
  • Internal I/O Connectors 1 x RGB Header(s)
  • 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
  • 6 x SATA 6Gb/s connector(s)
  • 1 x CPU Fan connector(s) (1 x 4 -pin)
  • 3 x Chassis Fan connector(s) (3 x 4 -pin)
  • 1 x AIO_PUMP connector (1 x 4 -pin)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s)
  • 1 x Clear CMOS jumper(s)
  • 1 x COM port header

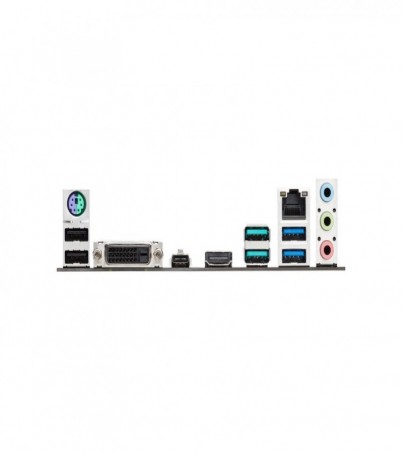

  • Back Panel Connectors 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.1 Gen 2 Type-A,
  • 1 x USB 3.1 Gen 1 (blue) USB Type-CTM,
  • 2 x USB 2.0
  • 2 x USB 3.1 Gen 1 (blue)
  • 3 x Audio jack(s)
  • LAN Realtek® RTL8111H
  • TUF LANGuard
  • Form Factor ATX Form Factor
  • 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • BIOS 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS User Profile,ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control,F4 AURA ON/OFF,F9 Search
  • Special Features ASUS TUF PROTECTION
  • - ASUS SafeSlot: Protect your graphics card Investment
  • - ASUS ESD Guard: Enhanced ESD protection
  • - ASUS Overvoltage Protection: World-class circuit-protecting power design
  • - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  • - ASUS DIGI+ VRM: 6 Phase digital power design
  • AURA :
  • - Aura Lighting Control
  • ASUS Exclusive Features :
  • - AI Suite 3
  • - Ai Charger
  • - PC Cleaner
  • ASUS Quiet Thermal Solution :
  • - Stylish Fanless Design Heat-sink solution & MOS Heatsink
  • - ASUS Fan Xpert 4 Core
  • ASUS EZ DIY :
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
  • ASUS Q-Design :
  • - ASUS Q-Slot
  • - ASUS Q-DIMM
  • Overclocking Protection :
  • - ASUS C.P.R.(CPU Parameter Recall)
  • Operating System Support Windows® 10 64-bit
