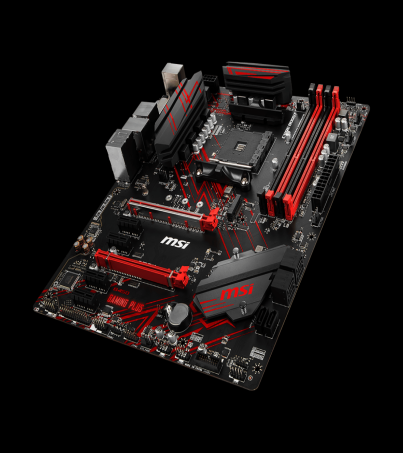

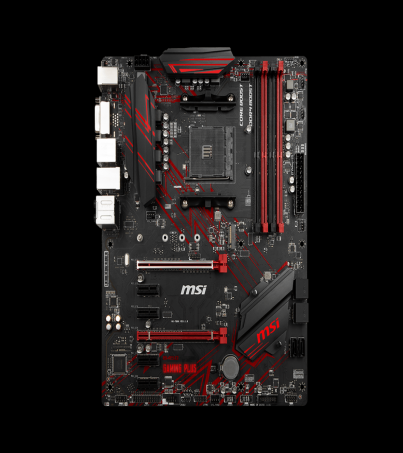

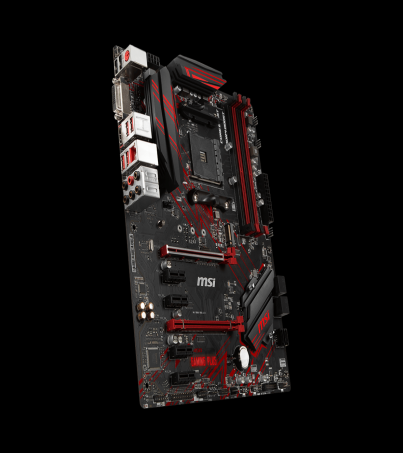

(AM4) MSI B450 GAMING PLUS(B450-GAMING-PLUS)

Name: (AM4) MSI B450 GAMING PLUS(B450-GAMING-PLUS)
Brand: MSI
SKU: supt16993-
Price: 3910 THB
Availability: InStock

13%

4,450.00

฿ 3,910.00

ฟรี

ได้รับภายใน : 27 เม.ย. ~ 29 เม.ย., 2024

สามารถเก็บเงินปลายทางได้

การรับประกัน

การรับประกัน : มีการรับประกัน 3 ปี

คืนสินค้าภายใน 15 วัน

คุณสมบัติทั่วไป

คำอธิบายสินค้า

รายละเอียดสินค้า

คะแนนและรีวิว

Q & A

คุณสมบัติทั่วไป

สิ่งที่ให้มาในกล่อง		MODEL
Chipset	AMD B450	Form Factor	ATX
Mainboard Brand	MSI	การรับประกัน	รับประกันโดยร้านผู้จัดจำหน่าย
ระยะเวลาการรับประกัน	3 years

คำอธิบายสินค้า

Supports AMD® RYZEN™ 1st and 2nd Generation / Ryzen™ with Radeon™ Vega Graphics Processors for Socket AM4
Supports DDR4-3466+(OC) Memory
Lightning Fast Game experience: TURBO M.2, StoreMI, AMD Turbo USB 3.1 GEN2
Audio Boost with Nahimic: Reward your ears with studio grade sound quality for the most immersive gaming experience
Core Boost: With premium layout and digital power design to support more cores and provide better performance.
DDR4 Boost: Give your DDR4 memory a performance boost with A-XMP
MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire™
VR Ready: Automatically optimizes your system for VR usage, pushing for maximum performance.
BIOS FLASHBACK+: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost
GAMING CERTIFIED: 24-hour on and offline game and motherboard testing by eSports players

รายละเอียดสินค้า

Brand MSI
Model B450 GAMING PLUS
CPU Support Supports AMD® Ryzen™ 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics Processors for Socket AM4
Socket AM4
Memory Support 4 x DDR4 memory slots, support up to 64GB
Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Chipset AMD B450
Graphics 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz
1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz
Multi Graphic Support Supports 2-Way AMD® CrossFire™ Technology
Audio Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio
Expansion Slots 1 x PCIe 3.0 x16 slot (PCI_E1)
- Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors
- Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors
1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)*
4 x PCIe 2.0 x1 slots*
* PCI_E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot.
Storage AMD® CPU
2 x SATA 6Gb/s ports*
1 x M.2 ports (Key M)*
- Supports PCIe 3.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
AMD® B450 Chipset
4 x SATA 6Gb/s ports
- SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.
* SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.
USB AMD® B450 Chipset
2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connector
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD® CPU
2 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1 x USB 3.1 Gen1 connectors (support additional 2 USB 3.1 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water-pump-fan connector
4 x 4-pin system fan connectors
1 x TPM module connector
1 x Front panel audio connector
2 x System panel connectors
1 x Serial port connector
1 x Parallel port connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
2 x 5050 RGB LED strip 12V connectors

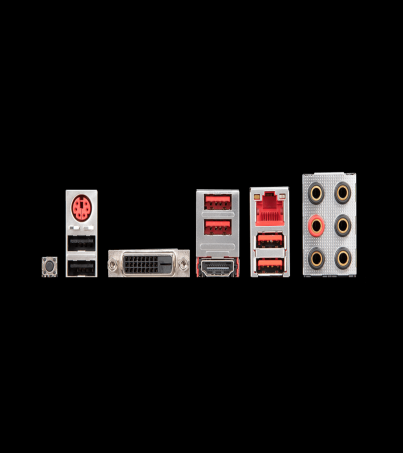

Back Panel Connectors 1 x BIOS FlashBack+
1 x PS/2 Port
4 x USB 3.1 Port
1 x LAN Port
6 x audio jacks
2 x USB 2.0
1 x DVI-D Port
1 x HDMI
LAN Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio
Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor
Operating System Support Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
