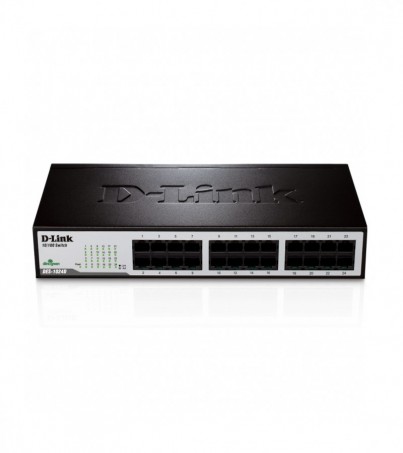

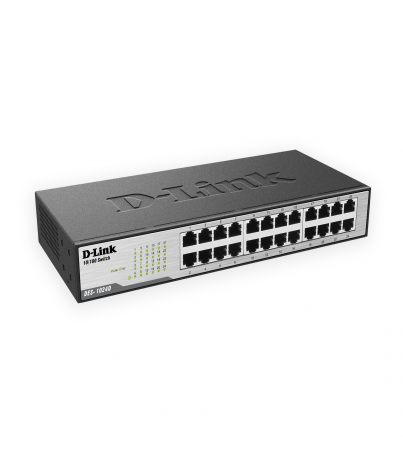

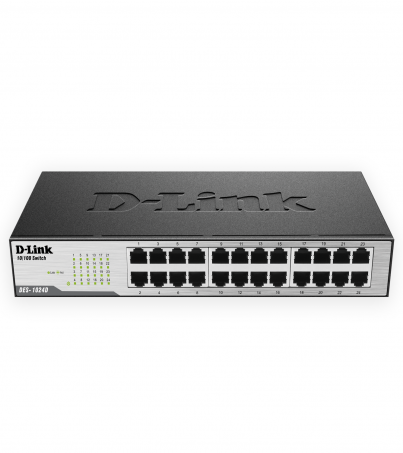

D-Link DES-1024D 24-Port Fast Ethernet Desktop/Rackmount Switch In Metal Casing (DES-1024D)

38%
1,990.00
฿ 1,250.00

ฟรี

ได้รับภายใน : 31 มี.ค. ~ 02 เม.ย., 2024

สามารถเก็บเงินปลายทางได้

การรับประกัน

การรับประกัน : มีการรับประกัน 5 ปี

คืนสินค้าภายใน 15 วัน

คุณสมบัติทั่วไป
คำอธิบายสินค้า
รายละเอียดสินค้า
คะแนนและรีวิว
Q & A
คุณสมบัติทั่วไป
สิ่งที่ให้มาในกล่อง MODEL D-Link DES-1024D 24-Port Fast Ethernet Desktop/Rackmount Switch In Metal Casing (DES-1024D)
การรับประกัน รับประกันโดยร้านผู้จัดจำหน่าย ระยะเวลาการรับประกัน 5 years
คำอธิบายสินค้า

Description

The D-Link® 24-Port Fast Ethernet Unmanaged Desktop/Rackmount Switch (DES-1024D) combines ease of use with unsurpassed performance, resulting in an exceptional value for any network administrator who wants the best possible solution at the best price. The DES-1024D is a true Plug-and-Play device, featuring Auto Speed Sensing, Auto-negotiation, and Auto MDI/MDI-X Crossover.

Power Packed

With non-blocking architecture, the DES-1024D filters and forwards packets at wirespeed for maximum throughput. An 8K MAC address table provides scalability for even the largest networks, while address learning, 802.3x flow control for full duplex mode, and back pressure flow control for half-duplex mode alleviate traffic congestion and ensure reliable data transmission. Designed using industry standards, the DES-1024D is compatible with virtually all 10/100 Ethernet devices. It protects your existing network investments while providing you with a straightforward migration path for faster network speeds.

Easy to Install and Maintain

Auto-MDI/MDI-X crossover on all ports eliminates the need for crossover cables when connecting to another switch or hub. Auto-negotiation on each port senses the link speed of a network device (either 10 or 100Mbps) and adjusts for compatibility and optimal performance. It also features diagnostic LEDs that display status and activity, allowing you to quickly detect and correct problems on the
network.

802.1p Quality of Service

The DES-1024D supports 802.1p Quality of Service. When the switch receives a frame tagged with an 802.1p priority, it automatically places it into one of four priority queues. Priority queuing is useful in implementations where time-sensitive data such as voice and video are streamed across the network.

รายละเอียดสินค้า

Specifications


Key FeaturesInexpensive Fast Ethernet solution for SOHO/SMB
Auto MDI/MDIX crossover for all ports
Store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast Ethernet speeds
IEEE 802.3x Flow Control
Plug-and-play installation
Switching fabricDES-1016D: ƒ 3.2 Gbps switching fabric
DES-1024D: ƒ 4.8 Gbps switching fabric
StandardsIEEE 802.3 10BASE-T Ethernet (twistedpair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay Auto-Negotiation
IEEE 802.3x Flow Control
IEEE 802.3az EEE function
ProtocolCSMA/CD
Data Transfer RatesEthernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
Number of PortsDES-1016D:16 10/100Mbps Fast Ethernet ports
ƒDES-1024D: ƒ 24 10/100Mbps Fast Ethernet ports
TopologyStar
Network Cables10BASE-T:
UTP CAT 3/4/5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX ƒUTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface ExchangeAuto MDI/MDIX adjustment for all ports
LED IndicatorsPer port: ƒ Link/Activity
Per device: ƒ Power
Transmission MethodStore-and-forward
MAC Address Table8K entries per device
MAC Address LearningAutomatic update
Packet Filtering/Forwarding Rates (half duplex)Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
RAM BufferƒDES-1016D: 256 Bytes (2M bits)
DES-1024D: 256 Bytes (2M bits)
POWER Input100~240 V AC 50/60 Hz internal universal power supply
MTBFƒDES-1016D: 2,266,559 hours
DES-1024D: 2,058,943 hours
Operating Temperature0 ˚ to 40 ˚C (32 ˚ to 104 ˚F)
Storage Temperature-10 ˚ to 70 ˚C (14 ˚ to 158 ˚F)
Operating Humidityƒ10% to 90% RH non-condensing
Storage Humidity5% to 90% RH non-condensing
Dimensions (W x D x H)280 x 125.8 x 44 mm (11.0 x 5.0 x 1.7 inches)
CertificationsFCC Class A
ICES-003 Class A
CE Class A
C-Tick Class A
VCCI Class A
cUL
LVD
