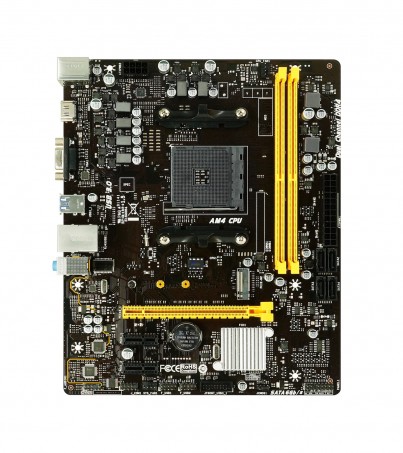

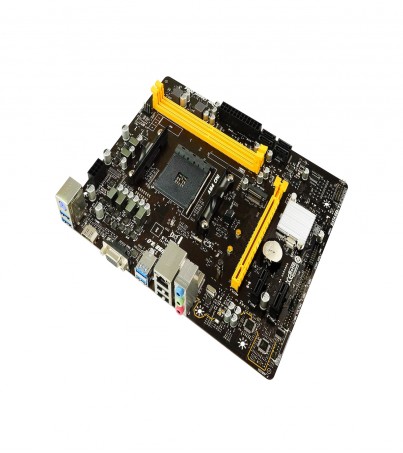

(AM4) BIOSTAR B450MH

Brand BIOSTAR

Model B450MH

CPU Support AMD A-series APU / Ryzen CPU / NPU for Socket AM4

Maximum CPU TDP (Thermal Design Power) : 105Watt

Socket AM4

Memory Support Support Dual Channel DDR4 1866/ 2133/ 2400/ 2667/ 2933/ 3200(OC) MHz

2 x DDR4 DIMM Memory Slot

Max. Supports up to 32GB Memory

Each DIMM supports non-ECC 8/16 GB DDR4 module

Chipset AMD B450

Audio Realtek ALC887 7.1-Channel Audio

Expansion Slots 1 x PCI-E 3.0 x16 Slot

2 x PCI-E 2.0 x1 Slots

Storage 4 x SATA3 Connectors (6Gb/s) :

- Supports AHCI & RAID 0, 1, 10

1 x M.2 Key M 32Gb/s Connector:

- Supports PCI-E & SATA SSD (Ryzen series - Summit Ridge / Pinnacle Ridge / Raven Ridge)

- Supports SATA SSD (A-series APU - Bristol Ridge)

USB 6 x USB 3.1 Gen1 Ports (5Gb/s) (4 on rear I/Os and 2 via internal headers)

6 x USB 2.0 Port(2 on rear I/Os and 4 via internal headers)

Internal I/O Connectors 1 x USB 3.1 Gen1 Header(5Gb/s) (each header supports 2 USB 3.1 Gen1 ports)

2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)

4 x SATA3 6Gb/s Connectors

1 x Front Audio Header

1 x Front Panel Header

1 x CPU Fan Connector

1 x System Fan Connector

1 x 8-Pin Power Connector

1 x 24-Pin Power Connector

1 x Clear CMOS Header

1 x COM Port Header

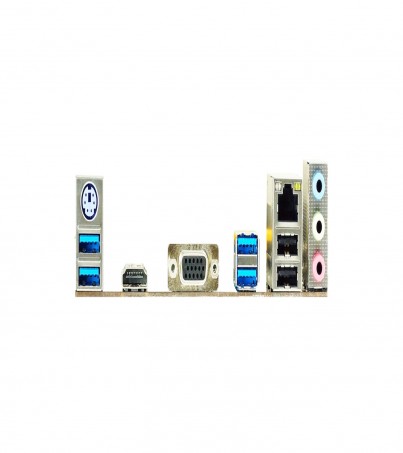

Back Panel Connectors 1 x PS/2 Keyboard/Mouse

4 x USB 3.1 Gen1 (5Gb/s) Ports

2 x USB 2.0 Ports

1 x HDMI Connector ,resolution up to 4096 x 2160@24Hz, compliant with HDMI 1.4

1 x VGA Port ,resolution up to 1920 x 1200 @60Hz

1 x LAN port

3 x Audio Jacks

LAN Realtek RTL8111H - 10/100/1000Mb/s Controller

Support Super LAN Surge Protection

Form Factor Micro ATX Form Factor Dimension: 19.8cm x 24.4cm ( W x L )

Operating System Support Support Windows 7(64bit) / 10(64bit)
