สินค้าเลขที่. 17937 คัดลอก URL

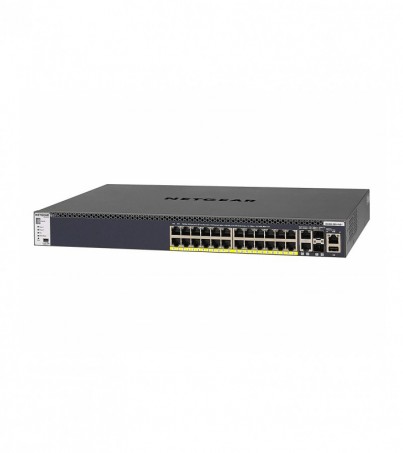

NETGEAR 24-Port Fully Managed Switch M4300-28G-PoE+1,000W PSU (GSM4328PB)
ฟรี
ได้รับภายใน : 31 มี.ค. ~ 02 เม.ย., 2024
สามารถเก็บเงินปลายทางได้
การรับประกัน
การรับประกัน : มีการรับประกัน 1 ปี
คืนสินค้าภายใน 15 วัน
สิ่งที่ให้มาในกล่อง | NETGEAR 24-Port Fully Managed Switch M4300-28G-PoE+1,000W PSU (GSM4328PB) | MODEL | NETGEAR 24-Port Fully Managed Switch M4300-28G-PoE+1,000W PSU (GSM4328PB) |
การรับประกัน | รับประกันโดยร้านผู้จัดจำหน่าย | ระยะเวลาการรับประกัน | 1 year |
- Cost effective 1G access layer in campus LAN networks, and high performance 10G distribution layer for midsize organizations networks
- Zero Touch AV-over-IP with pre-configured L2 Multicast on all 1G models (1G AV encoders and decoders) and 10G models (SDVoE-ready)
- Advanced Layer 2, Layer 3 and Layer 4 feature set - no license required - including Policy Based Routing, RIP, VRRP, OSPF and PIM
- Innovative mixed "Spine and Leaf", 1G and 10G stacking with nonstop forwarding and hitless failover redundancy
- Low acoustics, half-width 16-port and 24-port 10G models can be paired in a single rack space for redundant Top of Rack
- Up to 384 (Gigabit) ports, 768 (10 Gigabit) ports, 192 (40 Gigabit) ports or a combination in a stack seen as one “logical” switch
- PoE+ (30 watts per port) with hot swap, redundant power supplies and full provisioning
- 48- and 96-port 10G models’ ultra-low latency and scalable table size with 128K MAC, 8K ARP/NDP, 4K VLANs, 12K routes
- Mixed Stack of 1G and 10G models provides 16K MAC, 2K ARP/NDP, 4K VLANs and 512 routes
- SDN-Ready OpenFlow 1.3 support for maximum investment protection
Model Description
- 24x1G PoE+ Stackable Managed Switch with 2x10GBASE-T and 2xSFP+ (1,000W PSU)
Datasheet (PDF)
- M4300 Datasheet
Datasheet (Excel)
- M4300 Excel
Ordering Number
- GSM4328PB
Acoustics
- 39.8dB @ 25°C (77°F)
Power Consumption (Max)
- 833.20 Watts
1G RJ45 Ports
- 24 x 10/100/1000
10G RJ45 Ports
- 2 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds)
10G Fiber SFP+ Ports
- 2 x SFP+ (1G and 10G speeds)
Power over Ethernet
- 24 x PoE+ 30W
PoE Budget (Watts)
- 630W PoE Budget with 1 PSU @ 110V AC input
- 630W PoE Budget with 2 PSUs in redundant RPS mode @ 110V AC input
- 720W PoE Budget with 2 PSUs in shared EPS mode @ 110V AC input
- 720W PoE Budget with 1 PSU @ 220V AC input
- 720W PoE Budget with 2 PSUs in redundant RPS mode @ 220V AC input
Feature Set
- Layer 3 (static, policy-based and RIP OSPF VRRP PIM dynamic routing)
Management Ports
- 1G Ethernet service port for out-of-band management (OOB, RJ45)
- RS232 straight-through serial RJ45 for local management console
- Mini-USB port for local management console
- USB port for local storage, logs, configuration or image files
Form Factor
- Full width with dual, redundant modular PSUs for business continuity
ยังไม่มีรีวิว
คุณมีคำถามเกี่ยวกับผลิตภัณฑ์นี้หรือไม่?
ผู้ขายจะตอบกลับโดยเร็วที่สุด
NETGEAR 24-Port Fully Managed Switch M4300-28G-PoE+1,000W PSU (GSM4328PB)
105,900.00
฿ 103,900.00
