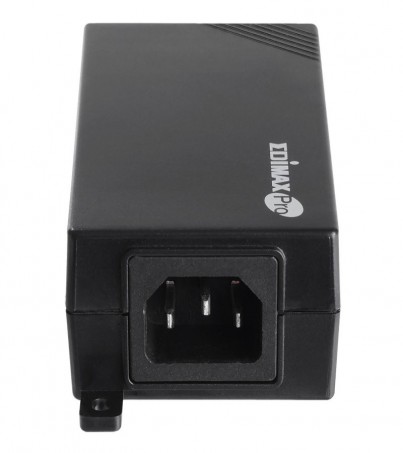

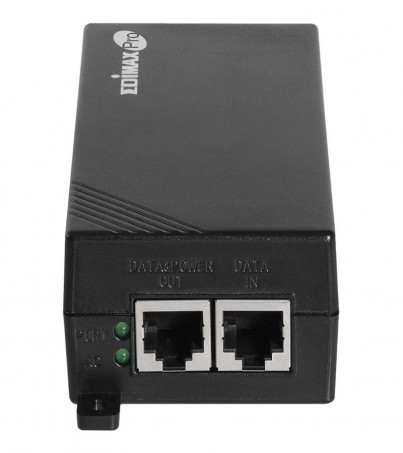

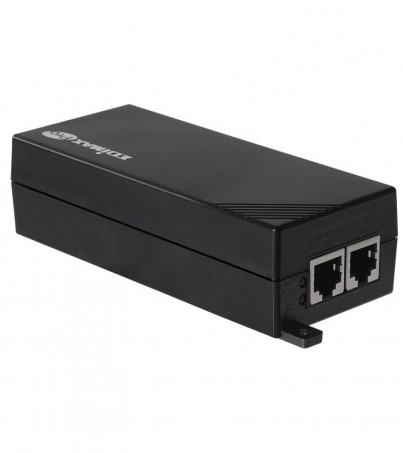

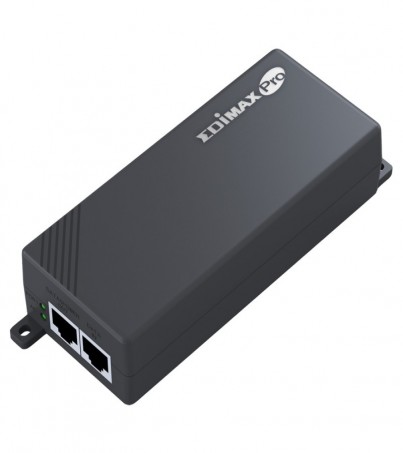

EDIMAX GP-101IT Power Over Ethernet Adapter Gigabit

26%
1,990.00
฿ 1,480.00

ฟรี

ได้รับภายใน : 31 มี.ค. ~ 02 เม.ย., 2024

สามารถเก็บเงินปลายทางได้

การรับประกัน

การรับประกัน : ไม่มีการรับประกัน

คืนสินค้าภายใน 15 วัน

คุณสมบัติทั่วไป
คำอธิบายสินค้า
รายละเอียดสินค้า
คะแนนและรีวิว
Q & A
คุณสมบัติทั่วไป
สิ่งที่ให้มาในกล่อง MODEL EDIMAX GP-101IT Power Over Ethernet Adapter Gigabit
การรับประกัน ไม่มีประกัน ระยะเวลาการรับประกัน No warranty
คำอธิบายสินค้า

IEEE 802.3at Gigabit PoE+ Injector

GP-101IT

  • Complies with IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) standards.
  • Adds PoE capability to a non-PoE Ethernet switch or router.
  • Gigabit LAN ports provide high-speed connectivity.
  • Supports PoE PSE (Power Sourcing Equipment) devices up to 30W.
  • PoE short circuit protection to safeguard network devices.
  • Delivers power and data to PoE devices up to 100 meters (328 feet) over a single Ethernet cable.
  • Reduces installation and equipment costs.
  • Easy plug-and-play desktop or wall-mounted installation.
รายละเอียดสินค้า

รายละเอียด Power Over Ethernet Adapter EDIMAX (GP-101IT) Gigabit


The Edimax GP-101IT is a Power over Ethernet injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deployment on the existing LAN infrastructure. With the use of power injectors, DC power of up to 30W and the data that comes from a non-PoE switch or router are merged together and then transmitted to the IEEE 802.3at/af compliant products such as PoE dome cameras through the Ethernet cabling. Hence, preserving your investment in hardware upgrade without the need for buying extra PoE switches.

IEEE 802.3at/af Power over Ethernet Standard
Because of adding the capability of IEEE 802.3at/af Power over Ethernet to a non-PoE Ethernet switch or router, the GP-101IT can directly be connected to any IEEE 802.3at/af end-nodes such as PTZ (Pan, Tilt, Zoom) network cameras, PTZ speed dome, color touch-screen Voice over IP (VoIP) telephones and multi-channel wireless LAN access points where the IEEE 802.3at/af in-line Power over Ethernet port is supported.

Higher Cost Efficiency and Easy Installation
The Power over Ethernet technology enables the Ethernet wire to carry both data and power. Thus, the GP-101IT reduces the need for cable installation and eliminates the need for extension cords or electrical outlets on the wall, ceiling or any unreachable place. In all, it lowers the installation costs and simplifies the deployment effort.

Flexible & Reliable Power Supply
Featuring PoE short circuit protection to safeguard network devices and protect against damage.

BrandEDIMAX
ModelGP-101IT
InputHARDWARE
Ports
- x1 Port RJ-45 10/100/1000Base-T Input Port
- x1 Port RJ-45 10/100/1000Base-T PoE Output Port

LED Indicators : Power and AC
Power Input : 100-240V AC, 50-60 Hz, 0.6A
Power Consumption : 30 Watts
Dimensions (L x W x H) : 155 x 58 x 36 mm
Weight : 185g
OutputPOWER OVER ETHERNET
Standard : IEEE802.3af and IEEE802.3at
Power Output : DC53V/0.55A
Pin Assignment : 4/5(+), 7/8(-) Mids-Span (Mode B)
USB PortSTANDARDS COMPLIANCE
Standards
- IEEE 802.3 10BaseT Ethernet
- IEEE 802.3u 100BaseTX Fast Ethernet
- IEEE 802.3ab 1000BaseT Gigabit Ethernet
- IEEE 802.3af Power Over Ethernet (PoE)
- IEEE 802.3at Power Over Ethernet Plus (PoE+)

Certifications : FCC, CE
MaterialPACKAGE CONTENTS
- GP-101IT PoE Injector
- One Power Cord
- Quick Installation Guide
DimensionENVIRONMENT
Temperature
- Operating: 0 ~ 40°C
- Storage: -40 ~ 70°C
Humidity (Non-condensing)
- Operating: 10 ~ 90%
- Storage: 5 ~ 90%
