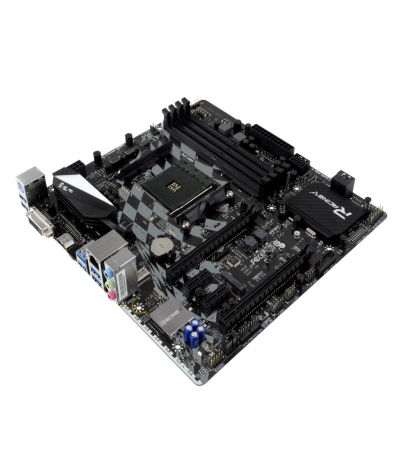

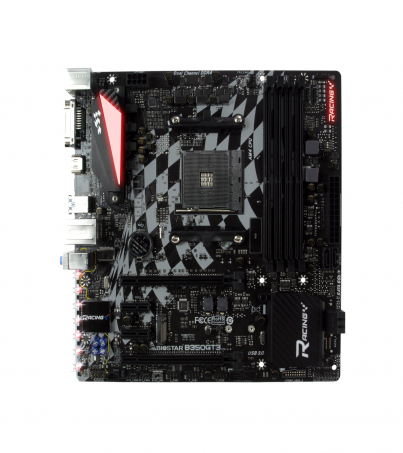

Biostar Racing B350 GT3 DDR4 AM4

8%
2,990.00
฿ 2,760.00

ฟรี

ได้รับภายใน : 30 มี.ค. ~ 01 เม.ย., 2024

สามารถเก็บเงินปลายทางได้

การรับประกัน

การรับประกัน : มีการรับประกัน 1 ปี

คืนสินค้าภายใน 15 วัน

คุณสมบัติทั่วไป
คำอธิบายสินค้า
รายละเอียดสินค้า
คะแนนและรีวิว
Q & A
คุณสมบัติทั่วไป
สิ่งที่ให้มาในกล่อง MODEL Biostar Racing B350 GT3 DDR4 AM4
Chipset AMD B350 Form Factor Micro-ATX
Mainboard Brand BIOSTAR การรับประกัน รับประกันโดยร้านผู้จัดจำหน่าย
ระยะเวลาการรับประกัน 1 year
คำอธิบายสินค้า
  • Support AMD Ryzen CPU / APU
  • AMD B350 single chip architecture
  • Support 4-DIMM DDR4-3200(OC)/ 2933(OC)/ 2667/ 2400 up to 64G maximum capacity
  • BIOSTAR Hi-Fi Technology inside
  • Realtek Dragon LAN
  • Support USB 3.1 Gen2
  • Support M.2(32Gb/s)
  • Support HDMI 4K resolution
รายละเอียดสินค้า
ChipsetAMD B350
CPU SUPPORTAMD A-series APU / Ryzen CPU / NPU for Socket AM4
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORYSupport Dual Channel DDR4 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133/ 1866 MHz
Support Non-ECC & ECC Un-buffered DIMM Memory modules
4 x DDR4 DIMM Memory Slot
Max. Supports up to 64GB Memory
* DDR4 2667 for AMD Ryzen CPU
Ryzen - DDR Maximum Frequency Support Table(For better DDR4 compatibility, it is recommended to follow the table below to install DDR4 modules. Please refer to memory support list for more details.)
MaximumDIMMA1DIMMA2DIMMB1DIMMB2
DDR4-2667-SR--
DDR4-2667-DR--
DDR4-2667-SR-SR
DDR4-2400-DR-DR
DDR4-2133SRSRSRSR
DDR4-1866DRDRDRDR
SR:Single-rank DIMM, 1R x4 or 1R x8
DR:Dualrank DIMMs, 2R x4 or 2R x8
INTEGRATED VIDEOBy CPU model
Supports DX12
Supports HDCP
STORAGE4 x SATA3 Connector
Support SATA RAID: 0,1,10
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCI-E Storage
* M.2 (32Gb/s) : The bandwidth is depended on CPU, Ryzen is 32Gb/s ; APU & NPU is 16Gb/s.
LANRealtek RTL8118AS - 10/100/1000Mb/s Controller
Support Super LAN Surge Protection
CODECRealtek ALC887 8-Channel HD Audio
Support Biostar Hi-Fi
USB2 x USB 3.1 Gen2 Type-A Port
4 x USB 3.1 Gen1 Port
1 x USB 3.1 Gen1 Header
2 x USB 2.0 Header
EXPANSION SLOT1 x PCI-E 3.0 x16 Slot(x16 for Ryzen CPU only, NPU/APU run at x8 speed)
1 x PCI-E 2.0 x16 Slot(x4)(share bandwidth w/ PCI-E x1 slot, when PCI-E x1 is occupied, PCI-E x16(x4) will run at x1 speed)
2 x PCI-E 2.0 x1 Slot
REAR I/O1 x PS/2
2 x USB 3.1 Gen2 Type-A Port
4 x USB 3.1 Gen1 Port
1 x HDMI Connector, resolution up to 4096 x 2160 @24Hz or 3840 x 2160 @30Hz
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x LAN port
3 x Audio Jacks
INTERNAL I/O1 x USB 3.1 Gen1 Header
2 x USB 2.0 Header
4 x SATA3 6Gb/s Connector
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCI-E Storage
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
1 x CPU Fan Connector
2 x System Fan Connector
2 x 5050 LED Header
1 x COM Port Header
H/W MONITORINGCPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU / System Fan Control
System Voltage Monitoring
DIMENSIONMicro ATX Form Factor Dimension: 24.4cm x 23.8cm ( W x L )
OS SUPPORTSupport Windows 10(x64)
Support Windows 7 (x64) for Bristol / Summit /Pinnacle Ridge only
BUNDLE SOFTWARERacing GT Utility
FLY.NET
BullGuard
ACCESSORIES4 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
FEATURESVIVID LED DJ
5050 LED FUN ZONE
Supports PURO Hi-Fi
Dual BIOS
Supports 100% Solid capacitor
Supports BIOS-Flasher
Supports BIOS Online Update
