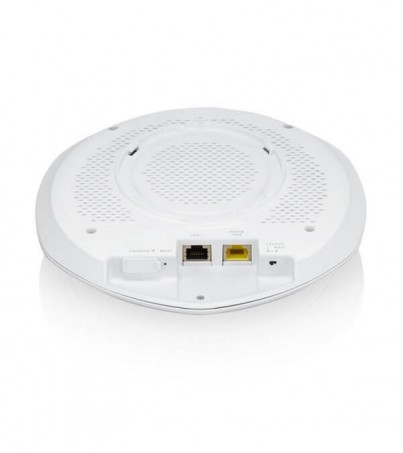

ZyXEL 802.11ac Dual Radio Dual-optimized Antenna 3x3 Access Point (WAC6103D-I)

Name: ZyXEL 802.11ac Dual Radio Dual-optimized Antenna 3x3 Access Point (WAC6103D-I)
Brand: ZYXEL
SKU: supt20964-
Price: 7260 THB
Availability: InStock

27%

9,900.00

฿ 7,260.00

ฟรี

ได้รับภายใน : 09 ส.ค. ~ 11 ส.ค., 2026

สามารถเก็บเงินปลายทางได้

การรับประกัน

การรับประกัน : มีการรับประกัน 1 ปี

คืนสินค้าภายใน 15 วัน

คุณสมบัติทั่วไป

คำอธิบายสินค้า

รายละเอียดสินค้า

คะแนนและรีวิว

Q & A

คุณสมบัติทั่วไป

สิ่งที่ให้มาในกล่อง		MODEL	ZyXEL 802.11ac Dual Radio Dual-optimized Antenna 3x3 Access Point (WAC6103D-I)
การรับประกัน	รับประกันโดยร้านผู้จัดจำหน่าย	ระยะเวลาการรับประกัน	1 year

คำอธิบายสินค้า

Ultra-fast, Ultra-slim

The WAC6103D-I is a high-performance 802.11ac access point offering combined data rates up to 1.75Gbps. Its dual-optimized antenna provides superior performance in both ceiling- and wall-mounted deployments.

Evolving with NebulaFlex Pro and Professional pack support, WAC6103D-S gives your wireless network the capability for tri-mode deployment, including standalone AP, controller-managed AP and Nebula cloud managed AP. The innovative flexibility adapts your rapidly-growing business needs and protects your wireless investment.

รายละเอียดสินค้า

Main Design
Wireless frequency	2.4 and 5 GHz
Radio	2
RF Specifications
Frequency band	2.4 GHz (IEEE 802.11 b/g/n) USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz Taiwan (TW): 2.412 to 2.462 GHz 5 GHz (IEEE 802.11 a/n/ac) USA (FCC): 5.15 to 5.25 GHz; 5.725 to 5.850 GHz European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz Taiwan (TW): 5.15 to 5.25 GHz; 5.725 to 5.850 GHz
802.11n/ac premium features	3x3 Multiple-Input Multiple-Output (MIMO) with three spatial streams Maximal Ratio Combining (MRC) 20-, 40- and 80-MHz channels Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) Cyclic Delay diversity (CSD) support Maximum Likelihood Demodulation (MLD) support Low Density Parity Check (LDPC) support
Conducted typical transmit output power (dBm)	FCC 11b/g : 28 FCC 11g/n : 28 FCC 11a : 28 FCC 11n/a (ac) : 28 EU 11b/g : 20 EU 11g/n : 20 EU 11a : 21 EU 11n/a (ac) : 26
Antenna system	Dual-optimized internal antenna
Antenna gain	Ceiling: 2.4 GHz 3 dBi; 5 GHz 4 dBi Wall: 2.4 GHz 4 dBi; 5 GHz 5 dBii
Support data rate	802.11a/g: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps 802.11b: 1, 2, 5.5 and 11 Mbps 802.11n: up to 450 Mbps in MCS23 (40 MHz) 802.11ac: up to 1300 Mbps in MCS9 (80 MHz)
Receive sensitivity	Min. Rx sensitivity to -102 dBm
Interfaces
Number of 10/100/1000M LAN	2 x switch ports
Console port	4-Pin serial
PoE	Yes
PoE power draw	12.48 W (802.3at PoE)*1
WLAN Features
WLAN maximum throughput	Up to 900 Mbps
Mesh AP (By License)*2	Yes
Mesh AP for multiple SSID with VLAN*2	Yes
Fast roaming	Pre-authentication, PMK caching and 802.11r/k/v
Wireless Security
WEP	Yes
WPA/WPA2-PSK	Yes
WPA/WPA2-Enterprise	Yes
WMM(WiFi certified)	Yes
WLAN access control list	Yes
EAP types	EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST, EAP-AKA and EAP-SIM
IEEE 802.1X	Yes
Number of SSID	16
Web authentication*2	Yes
MAC filtering	Yes
Layer-2 isolation	Yes
RADIUS authentication	Yes
Microsoft AD authentication*2	Yes
LDAP authentication*2	Yes
MAC authentication*2	Yes
Rogue AP detection	Yes
Rogue AP containment	Yes
Network
IPv6 host	Yes
VLANs	Yes
DHCP client	Yes
QoS
WMM	Yes
WMM power save	Yes
DiffServ marking	Yes
Management
ZON Utility	Discovery of Zyxel switches, APs and gateways Centralized and batch configurations IP configuration Device reboot Device reboot Firmware upgrade IP renew Device locating Device factory reset Device reboot Web GUI access One-click quick association with Zyxel AP Configurator (ZAC)
Smart Connect	Neighbor device discovery One-click remote management access to the neighboring Zyxel devices
Zyxel AP Configurator	Batch AP configuration Batch AP firmware upgrade Batch AP profile backup
Zyxel Wireless Optimizer	WiFi AP planning WiFi coverage detection Wireless health management
Standalone AP mode	Yes
Managed AP mode	Yes
CLI	Yes
Web UI	Yes
SNMP	v2c/v3
Others
Plenum rating	Yes
WPA/WPA2-PSK	Yes
Input power	802.3at PoE only (No DC jack)
MTBF (hr)	1,005,235
Standard Compliance
Ethernet	Yes
WPA/WPA2-PSK	IEEE 802.3 IEEE 802.3u IEEE 802.11ab IEEE 802.3au IEEE 802.3az IEEE 802.3at
PoE	IEEE 802.3at
WLAN	802.11b: DBPSK, DQPSK, CCK 802.11g: BPSK, QPSK, 16-QAM, 64-QAM 802.11a: BPSK, QPSK, 16-QAM, 64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 64-QAM, 256-QAM
Certifications
Radio	FCC part 15C, FCC part 15E, ETSI EN 300 328, EN 301 893, LP0002
EMC	FCC part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438
Safety	EN 60950-1, IEC 60950-1, BSMI CNS14336-1
Physical Specifications
Item	Dimensions (WxDxH)(mm/in.) 203.9 x 191.7 x 34.7/8.03 x 7.55 x 1.37 Weight (g/lb.) 445/0.98
Packing	Dimensions (WxDxH)(mm/in.) 235 x 246 x 60/9.25 x 9.69 x 2.36 Weight (g/lb.) 938/2.07
Included accessories	Wall/ceiling mount plate
Environmental Specifications
Operating	Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 90% (non-condensing)
Storage	Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing)
