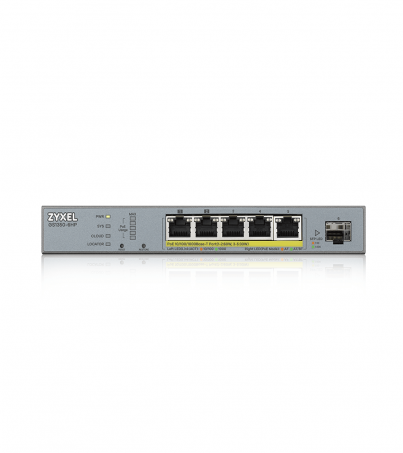

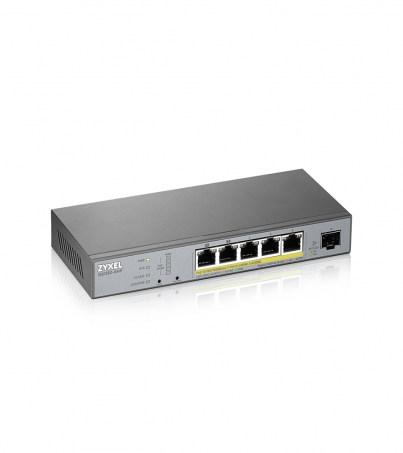

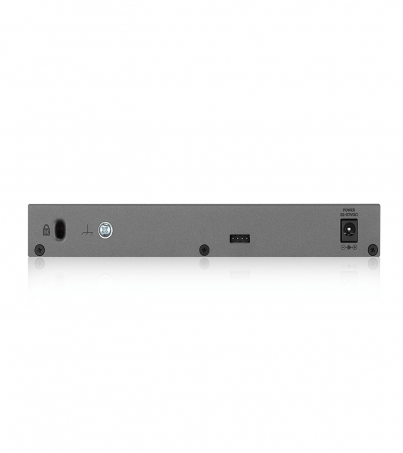

Zyxel GS1350 Series Smart Managed Switch For Surveillance (GS1350-6HP)

Model

Product name 5-port GbE Smart Managed PoE Switch with GbE Uplink

Switch class Smart Managed

Port Density

Total port count 6

100/1000 Mbps 5

Gigabit SFP 1

Gigabit combo (RJ-45/SFP) -

Configurable extended range ports 5

PoE

PoE ports 5

Total PoE budget (watt) 60

PoE Standard 802.3af/at

802.3bt (port 1-2)

Performance

Switching capacity (Gbps) 12

Forwarding rate (Mpps) 8.9

Packet buffer (byte) 525 K

MAC address table 8 K

Power

Input 52 V - 57 V DC

Max. power consumption (watt) 72

Physical Specifications

Dimensions (WxDxH)(mm/in.) 193 x 84 x 26 /

7.6 x 3.31 x1.02

Weight (kg/lb.) 0.41/0.9

Included accessories

Power adapter

Wall-mount kit

ESD/Surge Protections

Ethernet port surge protection 4 KV

Power supply surge protection: Line-GND 4 KV

Power supply surge protection: Line-Line 2 KV

Ethernet port ESD protection (air/contact) 15 KV/8 KV

Environmental Specifications

Operating Temperature -20°C to 50°C/-4°F to 122°F

Humidity 5% to 95% (non-condensing)

Storage Temperature -40°C to 70°C/-40°F to 158°F

Humidity 5% to 95% (non-condensing)

MTBF (hr) 2,021,885.87

Heat dissipation (BTU/hr) 245.52

Acoustic noise @ 25°C (dBA) 0 (Fanless)
