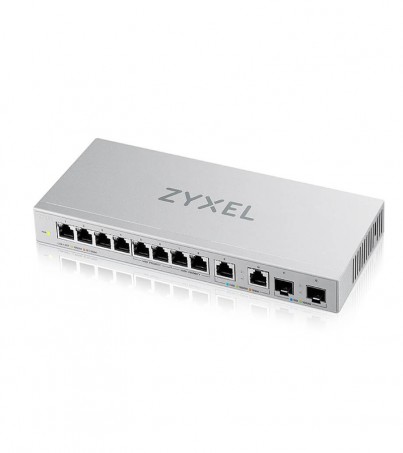

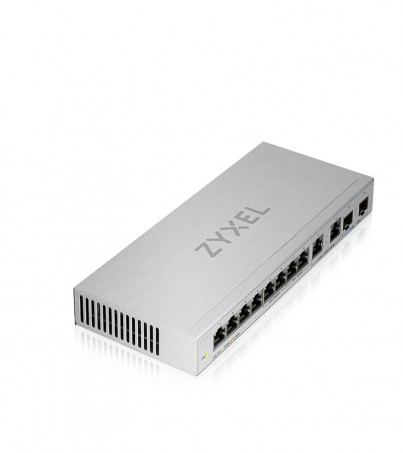

สวิตช์เครือข่าย ZyXEL GigaBit Switching Hub (XGS1010-12) 8 Port + 2 Port 2.5G + 2 Port 10G SFP

XGS1010-12

8 x RJ-45 10/100/1000 Mbps Ethernet port with metal shielding
2 x RJ-45 100/1000/2500 Mbps Ethernet port with metal shielding
2 x SFP+ (Uplink only)

IEEE 802.3 10BASE-TX Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE802.3ab 1000BASE-T
IEEE 802.3bz 2500BASE-T Gigabit Ethernet
SFF-8431
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3x full duplex operation and flow control

PWR: Power
Port 1~8: Link/Activity
- Green: 1000 Mbps
- Amber: 10/100 Mbps
Port 9~10: Link/Activity
- Sky Blue : 2.5Gbps
- Green : 1Gbps
- Amber: 100Mbps
Port 11~12: Link/Activity
- Blue: 10Gbps
- Green : 1000Mbps

10M,100M,1G,2.5G and 10G ports for multi speed
Fanless and quiet
Plug and Play, Easy use and Quick Install
Support IEEE 802.3az Energy Efficient
Desktop and Wall mount
Auto-MDI/MDIX in all ports
QoS ports for smooth media streaming, VoIP calls, and online gaming
Weighted Fair Queuing (WFQ) priority QoS

AC-to-DC external power adapter
Input: 100-240V~50-60Hz
Output: 12V DC/1.5A

Operating Temperature: 0°C to 40°C (32°F to 104°F)
Operating Humidity: 10% to 90% (Non-condensing)
Temperature: -40°C to 70°C (-32°F to 158°F)
Humidity: 10% to 90% (Non-condensing)

Safety: CE-LVD, BSMI
EMC: CE, FCC, EAC, BSMI, Class B

Switch
Power adapter
Quick Start Guide
Safety warning and DoC
