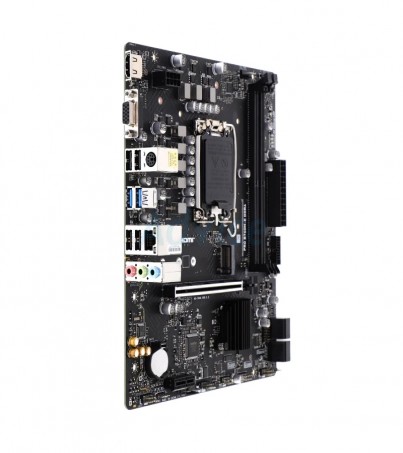

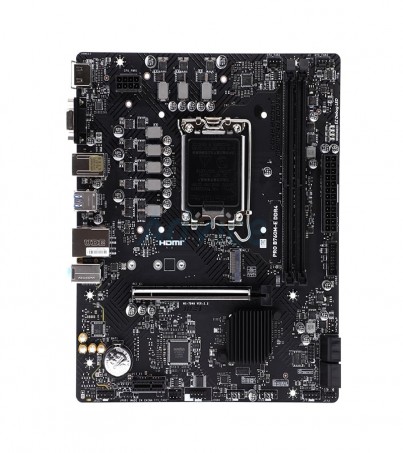

MSI PRO B760M-E DDR4

Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1

Processor socket LGA1700

Please go to www.msi.com to get the newest support status as new processors are released.

1700

Intel® B760 Chipset

2x DDR4 memory slots, support up to 64GB 1

Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)

Max overclocking frequency:1DPC 1R Max speed up to 4600+ MHz

1DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP)

3200

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2

1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2

Available only on processors featuring integrated graphics

Graphics specifications may vary depending on the CPU installed.

N/A

Realtek® ALC892/ ALC897 Codec

7.1-Channel High Definition Audio

1x PCIe x16 slot (From CPU)Supports up to PCIe 4.0 x161x PCIe x1 slot (From B760 chipset)Supports PCIe 3.0 x1

PCIe 4.0

4x SATA 6Gb/s ports (From B760chipset) 1

1. SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
2. 1x M.2 slot (Key M, from B760 chipset) 1Supports up to PCIe 3.0 x4Supports up to SATA 6Gb/sSupports 2242/ 2260/ 2280 storage devicesSupport Intel® Optane™ Memory
   • Supports Intel® Smart Response Technology for Intel Core™ processors
3. SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

PCIe 3.0 & SATA

Intel® B760 Chipset

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)

6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x TPM module connector

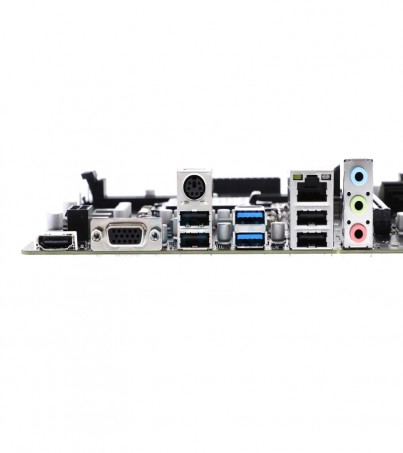

1. HDMI
2. VGA
3. Keyboard / Mouse
4. USB 3.2 Gen 1 5Gbps Type-A
5. LAN port
6. Audio connector
7. USB 2.0

1x Intel® I219V 1Gbps LAN controller

None

M-ATX Form Factor

9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)

N/A

N/A

N/A

N/A

Support for Windows® 11 64-bit, Windows® 10 64-bit

N/A
