AMD FidelityFX™ Super Resolution

AMD Radeon Super Resolution

4K and Beyond

SPECIFICATIONS

GPU

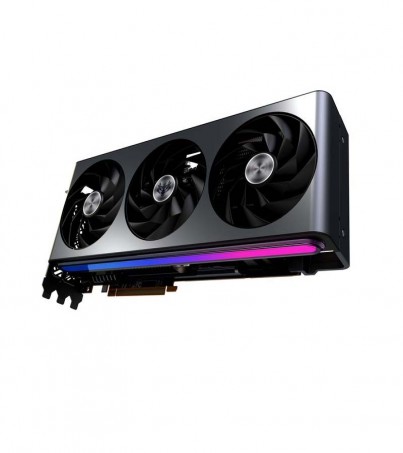

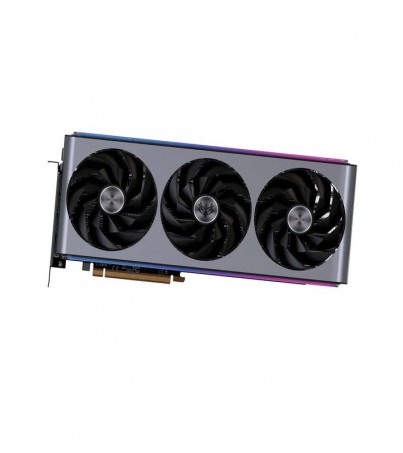

• AMD Radeon™ RX 7900 XTX Graphics Card
  5nm GPU
  AMD RDNA™ 3 Architecture

Engine Clock

• Boost Clock: Up to 2680 MHz
• Game Clock: Up to 2510 MHz
• Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
• Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

• 6144

Compute Units

• 96 CU (with RT+AI Accelerators)

Infinity Cache

• 96MB

Ray Accelerators

• 96

Memory Size/Bus

• 24GB/384 bit GDDR6

Memory Clock

• 20 Gbps Effective

Displays

• Maximum 4 Displays

Resolution

• HDMI™: 7680×4320
• DisplayPort 2.1: 7680×4320

Interface

• PCI-Express 4.0 x16

Output

• 2x HDMI
• 2x DisplayPort

BIOS Support

• Dual UEFI

Game Index

• 4K

Sapphire Features

• Dual BIOS
• TriXX Software Switch
• Premium Digital Power Design
• Ultra High Performance Conductive Polymer Aluminum Capacitors
• Fuse Protection
• Tri-X Cooling Technology
• Vapor-X Cooling
• High TG Copper PCB
• Optimized Composite Heatpipe
• Intelligent Fan Control
• Precision Fan Control
• Metal Backplate with ARGB
• Dual ARGB Light Bar
• Two-Ball Bearing Fans
• Angular Velocity Fan Blade
• Assistive System Fan Control
• Die Casted Aluminum-Magnesium Alloy Frame
• Frontplate Heatsink for VRM
• Wave Fin Design
• V Shape Fin Design for GPU Cooling
• TriXX Supported
• Fan Check
• Fan Quick Connect
• TriXX Boost
• NITRO Glow
• External RGB LED MB Synchronization

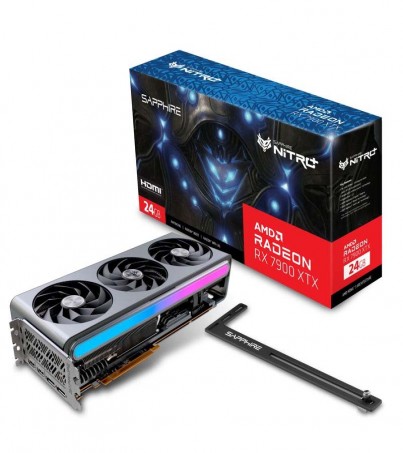

Accessories Bundled

• Graphics Card Supporter
• ARGB Extension Cable

AMD Features

• AMD RDNA™ 3 Gaming Architecture
• 96 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
• 96MB AMD Infinity Cache™ technology
• DisplayPort™ 2.1
• AMD Radiance Display™ Engine
• AMD Radeon™ Boost technology*
• AMD Radeon™ Anti-Lag* technology*
• 24GB GDDR6 on 384-Bit Memory Bus
• PCI® Express 4.0 ready
• AMD FidelityFX™ technologies*
• AMD FidelityFX™ Super Resolution technology*
• Microsoft® DirectX® 12 Ultimate
• Microsoft® DirectStorage
• Vulkan® Optimized
• AMD smart technologies*
• AMD Software: Adrenalin Edition™ application
• AMD Noise Suppression*
• AMD Privacy View*
• AMD Radeon™ Super Resolution technology*
• AMD Link*
• AMD Freesync™ technology

Cooling

• 3 Fans

  Vapor-X Cooling

Form Factor

•
  3.5 slot, ATX
  Dimension: 320(L)X 135.75(W)X 71.6 (H)mm

Power Consumption

• 420W Total Board Power

OS

• Linux®, Windows® 10, and Windows 11. 64-bit  operating system required

System Requirement

• Minimum 800 Watt Power Supply
• 3 x 8-pin Power Connector.
• PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
