CANON TC-20 IMAGEPROGRAF PRINTER

Name: CANON TC-20 IMAGEPROGRAF PRINTER
Brand: canon
SKU: supt33825-
Price: 34000 THB
Availability: InStock

36,000.00

฿ 34,000.00

ฟรี

ได้รับภายใน : 24 พ.ย. ~ 26 พ.ย., 2024

สามารถเก็บเงินปลายทางได้

การรับประกัน

การรับประกัน : มีการรับประกัน 1 ปี

คืนสินค้าภายใน 15 วัน

คุณสมบัติทั่วไป

คำอธิบายสินค้า

รายละเอียดสินค้า

คะแนนและรีวิว

Q & A

คุณสมบัติทั่วไป

สิ่งที่ให้มาในกล่อง	CANON TC-20 IMAGEPROGRAF PRINTER	MODEL	CANON TC-20 IMAGEPROGRAF PRINTER
การรับประกัน	Warranty Available	ระยะเวลาการรับประกัน	1 year

คำอธิบายสินค้า

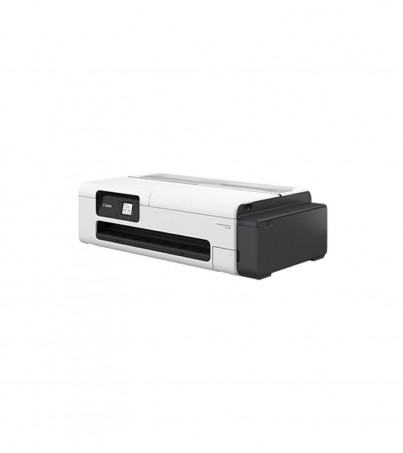

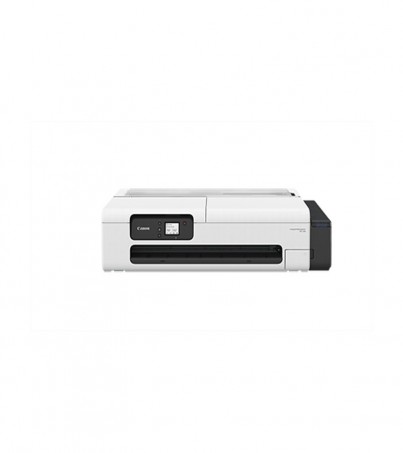

imagePROGRAF TC-20

Compact Efficiency with Excellent Print Quality

TC-20, 24 inch desktop large format printer comes with roll support and standard built-in auto sheet feeder, produces quality drawings & poster prints for hybrid workplaces.

Suitable for CAD & poster printing
4-colour pigment ink
Space-saving desktop model
Support free poster & print submission applications

รายละเอียดสินค้า

Printer
Printer Type 4-Colour 24" (610 mm)
Number of Nozzles
- 4,352 nozzles (BK 1,280 nozzles, C,M,Y: 1,024 nozzles each)
- Maximum Print Resolution 2400 × 1200 dpi
- Nozzle Pitch 1200 dpi (2 lines)
- Line Accuracy*1 ± 0.1% or less
Ink Capacity
- Sales Ink: 70 ml (BK, C, M, Y)
- Bundled Starter Ink: 70 ml (BK, C, M, Y)
Ink Type
- Pigment Ink
Printer Language
- SG Raster (Swift Graphic Raster)
Printing Solutions
- Canon PRINT Inkjet/SELPHY (iOS/Android), Canon Print Service (Android), Free Layout plus, PosterArtist, Direct Print Plus, PIXUS/PIXMA Cloud Link, Apple AirPrint, Mopria, ChromeOS
Management Solutions
- Media Configuration Tool, Quick Utility Toolbox, Wi-Fi Connection Assistant, Printer Update Utility
Standard Interfaces (Built-in)
- USB B Port (Series B, 4 pins)
- Hi-Speed USB
Full Speed (12 Mbit/sec)
- High Speed (480 Mbit/sec)
Bulk Transfer
- IEEE 802.3 10base-T
- IEEE 802.3u 100base-TX
- SNMP, HTTP, TCP/IP (IPv4/IPv6)
Wireless LAN:
- IEEE802.11b/g/n
- WPA-PSK (TKIP/AES)
- WPA2-PSK (TKIP/AES)
- WPA3-SAE (AES)
- WPA-EAP (AES)*2
- WPA2-EAP (AES)*2
- WPA3-EAP (AES)*2
Standard Memory 1 GB
Print Speed*3
Plain Paper (CAD Drawing)
- 32 sec (Draft) (Monochrome)
Media Handling
- Media Feed and Output
Roll Paper
- One Roll, Top Load, Front Output
Cut Sheet
- Top Load, Front Output*4
Media Width (Roll / Cut Sheet)
- Roll Width: 297 ~ 610 mm (A3 width to 24");
- Cut Sheet Width: 210 ~ 297 mm (A3, A4, Letter)
Media Thickness (Roll / Cut Sheet)
- 0.08 ～ 0.28 mm
Media Core Size
- 2 inch core
Min. Printable Length
- Roll Paper 203.2 mm
- Cut Sheet 203.2 mm
- Max. Printable Length
- Roll Paper 4 m*5
- Cut Sheet 432 mm
- Maximum Outer Roll Diameter 110 mm or less
- Borderless Printing Width NA
Margins (Recommended Area)
Roll Paper
- Top/Bottom: 5 mm, Left/Right: 5 mm*6
Cut Sheet
- Top/Bottom: 5 mm, Left/Right: 5 mm*6
- Margins (Printable Area)
Roll Paper
- Top/Bottom: 5 mm, Left/Right: 5 mm*6
Cut Sheet
- Top/Bottom: 5 mm, Left/Right: 5 mm*6
Dimensions & Weight
Dimensions (W x D x H)
Main Unit
- 968 × 545 × 395 mm (Auto Sheet Feeder Closed)
- 968 × 525 × 245 mm (Auto Sheet Feeder Opened)
Main Unit + Printer Stand + Basket (SD-24)
- 968 × 870 × 874 mm (Basket Opened)
- 968 × 707 × 874 mm (Basket Closed)
Main Unit + Desktop Basket (BU-06)
- 968 × 825 × 965*7 mm (Basket Opened)
- 968 × 595 × 965*7 mm (Basket Closed)
Weight*8
- Main Unit 32 kg
- Main Unit + Printer Stand + Basket (SD-24) 40 kg
- Main Unit + Desktop Basket (BU-06) 33 kg
Packaged Dimensions (W x D x H)
- Main Unit
- 1120 x 726 x 406 mm
- Stand + Basket (SD-24)
1055 x 824 x 268 mm
Desktop Basket
798 x 301 x 111 mm
Packaged Weight
Main Unit
43 kg
Stand + Basket (SD-24)
16 kg
Desktop Basket
1.8 kg
Power & Operating Requirements
Power Supply
AC 100 - 240 V, 50 - 60 Hz
Power Consumption
Printing*9
28 W or less
Sleep Mode*9
1.8 W or less
Power Off
0.3 W or less
Operating Environment
Temperature
15 ～ 30°C
Humidity
10 ～ 80% RH (no dew condensation)
Acoustic Sound
Acoustic Power*10
Operation: Approx. 6.0 Bels
Acoustic Pressure*10
Operation: Approx. 42.5 dB (A)
Standby: 35 dB (A) or less
Accessories

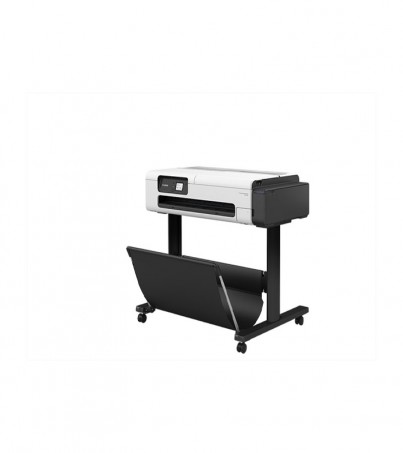

Printer Stand (Optional)
SD-24

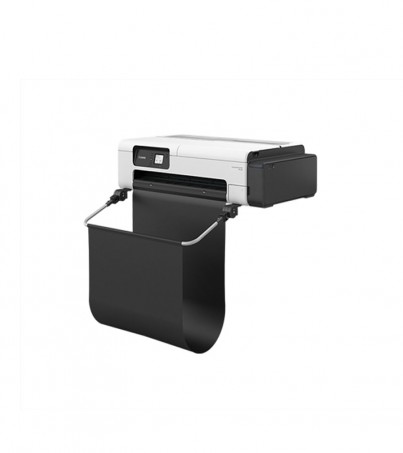

Desktop Basket
BU-06
Consumables
Ink Bottle
PFI-050 (70 ml)
Black / Cyan / Magenta / Yellow
Print Head
PF-08
Cutter Blade
NA
Maintenance Cartridge
MC-32
