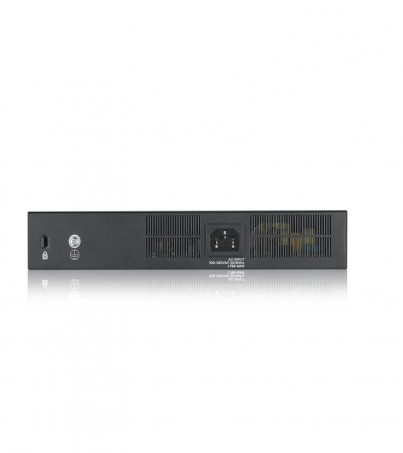

ZYXEL Smart Managed Switch รุ่น GS1920-24HPV2

Name: ZYXEL Smart Managed Switch รุ่น GS1920-24HPV2
Brand: ZYXEL
SKU: supt33997-
Price: 18400 THB
Availability: InStock

19,500.00

฿ 18,400.00

ฟรี

ได้รับภายใน : 30 เม.ย. ~ 02 พ.ค., 2024

สามารถเก็บเงินปลายทางได้

การรับประกัน

การรับประกัน : มีการรับประกัน 3 ปี

คืนสินค้าภายใน 15 วัน

คุณสมบัติทั่วไป

คำอธิบายสินค้า

รายละเอียดสินค้า

คะแนนและรีวิว

Q & A

คุณสมบัติทั่วไป

สิ่งที่ให้มาในกล่อง	ZYXEL Smart Managed Switch รุ่น GS1920-24HPV2	MODEL	ZYXEL Smart Managed Switch รุ่น GS1920-24HPV2
การรับประกัน	Warranty Available	ระยะเวลาการรับประกัน	3 years

คำอธิบายสินค้า

ZYXEL Smart Managed Switch รุ่น GS1920-24HPV2

24-port GbE Smart Managed PoE Switch
Web Managed/Cloud Management (Nebula Free Cloud)
24 x GbE RJ-45 ports
4 x GbE combo (RJ-45/SFP) ports
Full 24 Port PoE with power budget: 375 W (802.3af/at) Max 30W/Port
NebulaFlex” gives you the flexibility to switch between standalone and our license-free Nebula cloud management
Nebula cloud management allows easy deployment, real-time configurations and effortless access to all your cloud devices anytime
Using user-friendly web-based GUI to manage and set up the switch without learning complex CLI
Smart fan and fanless designs offer silent operations in your office
Check real-time status intuitively by cloud and PoE LED indicators

รายละเอียดสินค้า

verview	Zyxel GS1920-24HPv2 Smart L2-Managed Gigabit Switch 24 Port, 4 Port Combo SFP/RJ45, จ่ายไฟ POE 802.3at 24 Port สูงสุด 375W รองรับการ Managed แบบ Standalone/NabulaFlex, VLAN, DHCP Snooping
Product name	24-port GbE Smart Managed PoE Switch
Switch class	Smart Managed
Total port count	28
100/1000 Mbps	24
Gigabit Combo (RJ-45/SFP)	4
Gigabit SFP	-
PoE ports	24
Total PoE budget (Watts)	375
High power PoE 802.3at	Yes
Switching capacity (Gbps)	56
Forwarding rate (Mpps)	42
Packet buffer (byte)	1.5 M
MAC address table	16 K
Flash/RAM	32 MB/256 MB
Input	100 to 240 V AC, 50/60 Hz
Max. power consumption (watt)	463.5
Item	Dimensions (WxDxH)(mm/in.) 441 x 270 x 44/ 17.36 x 10.63 x 1.73 Weight (kg/lb.) 3.8/8.38
Fanless	-
MTBF (hr)	638,691
Heat dissipation (BTU/hr)	1,580.54
Acoustic noise @ 25°C (dBA)	27.2
Operating	Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 90% (non-condensing)
Storage	Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing)
Included accessories	Power cord Rack mounting kit
Standard Compliance	IEEE 802.3u 100BASE-TX Ethernet* IEEE 802.3ab 1000BASE-T Ethernet* IEEE 802.3z 1000BASE-X* IEEE 802.3af PoE* IEEE 802.3at PoE Plus* IEEE 802.3az EEE* IEEE 802.3x flow control IEEE 802.1AB LLDP/LLDP-MED IEEE 802.3ad LACP aggregation* IEEE 802.1D Spanning Tree Protocol (STP)* IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)* IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1Q VLAN tagging* IEEE 802.1p Class of Service (CoS) prioritization* IEEE 802.1X port authentication*
Resilience and Availability	IEEE 802.1D Spanning Tree Protocol (STP)* IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)* IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.3ad LACP (Max # Trunks/Links per Trunk): 8/8* Loop guard* ErrDisable recovery MRSTP (Zyxel proprietary) Dual configuration files Dual images*
Traffic Control	802.1Q Static VLANs/Dynamic VLANs: 1 K/4 K Port-based VLAN Protocol-based VLAN IP Subnet-based VLAN MAC-based VLAN Private VLAN Voice VLAN* VLAN ingress filtering LACP algorithm of source/destination MAC/IP GVRP L2PT
Security	802.1X* Port security* Layer 2 MAC filtering Layer 3 IP filtering Layer 4 TCP/UDP socket filtering Static MAC forwarding Multiple RADIUS servers* Multiple TACACS+ servers 802.1x VLAN and 802.1p assignment by RADIUS* Login authentication by RADIUS* Login authentication by TACACS+ TACACS+ accounting Authorization on RADIUS* Authorization on TACACS+ SSL* MAC freeze DHCP snooping IPv4* DHCP snooping IPv6 ARP inspection Static IP-MAC-Port binding Policy-based security filtering Port isolation IP source guard MAC search Guest VLAN* ACL packet filtering (IPv4/IPv6)* CPU protection Interface related trap enable/disable (by port) IPv6 Duplicated Address Detection (DAD)*
Quality of Service (QoS)	No. of hardware queues per port: 8* 802.1p queuing methods: SPQ, WRR, WFQ* Storm control: broadcast, multicast, unknown unicast (DLF)* Port-based rate limiting (ingress/egress) Rate limiting per IP/TCP/UDP per port Policy-based rate limiting 802.3x flow control 802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable) DiffServ (DSCP)
Layer 2 Multicast	L2 multicast IGMP snooping (v1, v2, v3)* IGMP snooping fast Leave Configurable IGMP snooping timer and priority IGMP snooping statistics IGMP throttling MVR support IGMP filtering IGMP snooping immediate leave IGMP proxy mode & snooping mode selection MLD snooping
Manageability	SNMP v1, v2c, v3 SNMP trap group RMON (1, 2, 3, 9) ICMP echo/echo reply Syslog* IEEE 802.1AB LLDP IEEE 802.1AB LLDP-MED Custom default Syslog (IPv4/IPv6) Display port utilization* Support NebulaFlex™ for hybrid mode
IPv6 Management	IPv6 over Ethernet (RFC 2464) IPv6 addressing architecture (RFC 4291) Dual stack (RFC 4213) ICMPv6 (RFC 4443) Path MTU (RFC 1981) Minimum path MTU size of 1280 (RFC 5095) Encapsulation for maximum MTU of 1500 Neighbor discovery (RFC 4861) DHCPv6 relay Default DHCP client mode* DAD (Duplicated Address Detection)*
Device Management	Standalone management by Web interface Cloud management by Nebula Control Center* Zyxel iStacking™ Web interface Management through SNMP Remote firmware upgrade by Web Configuration saving and retrieving Configure clone DHCP relay per VLAN DHCP client IPv4* DHCP client IPv6 Daylight saving* NTP Server (IPv4/IPv6) – Support DNS format* Port mirroring* Scheduled PoE* PoE default consumption mode* Restore to last custom default
MIB	Zyxel private common MIB RFC 1066 TCP/IP-based MIB RFC 1213, 1157 SNMPv2c/v3 MIB RFC 1493 bridge MIB RFC 1643 Ethernet MIB RFC 1757 RMON Group 1, 2, 3, 9 RFC 2011, 2012, 2013 SNMPv2 MIB RFC 2233 SMIv2 MIB RFC 2358 Ethernet-like MIB RFC 2674 bridge MIB extension RFC 2819, 2925 remote management MIB RFC 3621 power Ethernet MIB RFC 4022 management information base for transmission control protocol RFC 4113 management information base for userdatagram protocol RFC 4292 IP forwarding table MIB RFC 4293 Management Information Base (MIB) for IP
Certifications	Safety LVD BSMI EMC FCC Part 15 (Class A) CE EMC (Class A) BSMI ENC RoHS Level A
Zyxel One Network	ZON Utility* Discovery of Zyxel switches, APs and gateways Centralized and batch configurations: IP configuration IP renew Device factory reset Device reboot Device locating Web GUI access Password configuration One-click quick association with Zyxel AP Configurator (ZAC) Automatic detection of the latest firmware Displays device serial number and hardware version Cloud mode on/off option for Hybrid series devices
Smart Connect	Discover neighboring devices One-click remote management access to the neighboring Zyxel devices Reset neighboring devices remotely to factory defaults Power cycle neighboring powered devices (PoE switches only)
