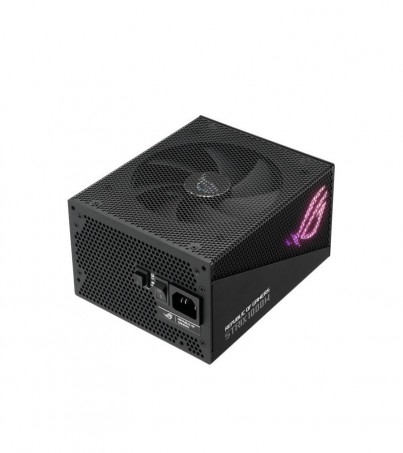

ASUS ROG STRIX 1000G GOLD AURA EDITION EXUDE POWER *พาวเวอร์ซัพพลาย

SPECIFICATION

Intel Form Factor

• ATX12V

ATX 3.0

• Yes

Dimensions

• 180 x 150 x 86 mm

Efficiency

• 80Plus Gold

Protection Features

• OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

• ROHS

AC Input Range

• 100-240Vac

DC Output Voltage

• +3.3V +5V +12V -12V +5Vsb

Maximum Load

• 22A 22A 83.3A 0.3A 3A

Combined Load

• 120W 120W 996.6W 3.6W 15W

Total Output

• 1000W

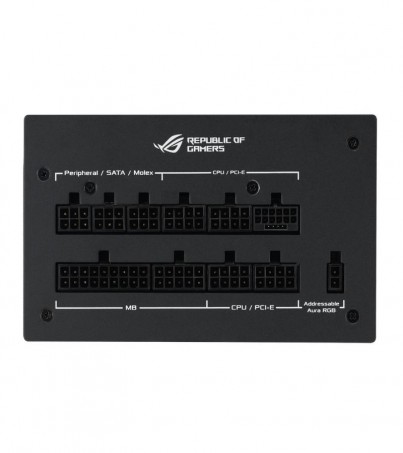

Connectors

• MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 8-pin x 4 SATA x 5 PERIPHERAL x 4

Package Contents

• Power Cord x 1 Motherboard Power Cable x 1 (600mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 1 (700mm) PCI-E 1-to-1 Cable x 2 (700mm) PCI-E 1-to-2 Cable x 1 (700mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) Addressable RGB Cable x 1 (800mm) User Manual x 1

Weight

• 3.03 kg (single PSU)

AURA SYNC

• ARGB

0dB Fan Button

• Yes

Cybenetics Noise Level Certification

• A+
