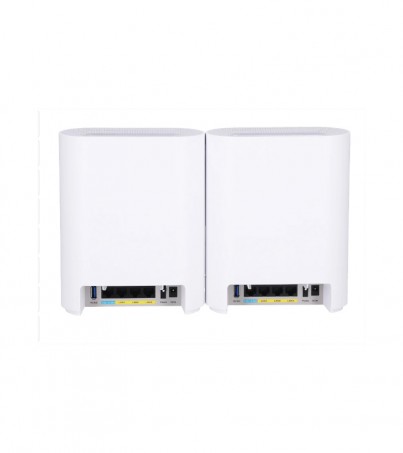

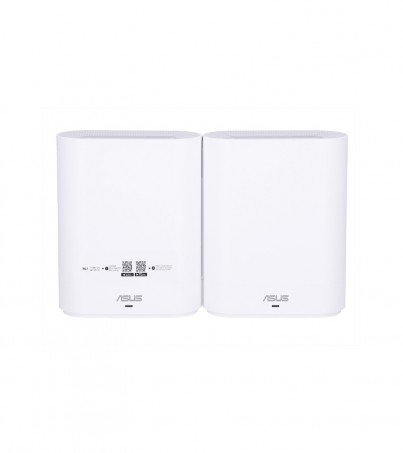

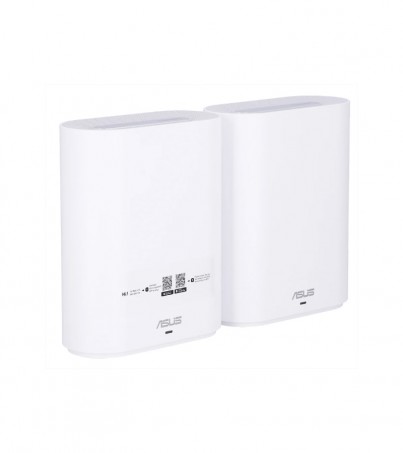

ASUS ROUTER (เราเตอร์) EXPERTWIFI EBM68 PACK 2 (WHITE) (EBM68/W-2PK)

Model : ASUS ExpertWiFi EBM68
Model Name : EBM68

Network Standard
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6

Product Segment : AX7800 ultimate AX performance : 574+2402+4804Mbps

Data Rate
• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• WiFi 5 (802.11ac) (1024QAM) : up to 4333Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz-1) : up to 2402Mbps
• WiFi 6 (802.11ax) (5GHz-2) : up to 4804Mbps

Antenna : Internal antenna x 6

Transmit / Receive
• 2.4GHz 2x2
• 5GHz-1 2x2
• 5GHz-2 4x4

Processor : 1.7 GHz quad-core processor

Memory
• 256 MB Flash
• 1 GB RAM

Boosts Speed
• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming : standard-based and universal
• 1024-QAM high data rate
• 20/40/80/160 MHz bandwidth

* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency
• 2.4 GHz
• 5 GHz-1
• 5 GHz-2

Operating Mode
• Wireless Router Mode
• AiMesh Node Mode
• Access Point Mode

I/O Ports
• RJ45 for 2.5G BaseT for WAN x 1
• RJ45 for Gigabits BaseT for LAN x 3
• USB 3.2 Gen 1 x 1

Buttons
• WPS Button
• Reset Button
• Power Switch

LED Indicator : Power x 1

Power Supply
• AC Input : 110V~240V(50~60Hz)
• DC Output : 12 V with max. 3 A current

Mounting : Wall Mount

Package Content
• ExpertWiFi EBM68
• RJ-45 cable
• Power adapter
• Warranty card
• Quick start guide
• Wall-mount kit

Product Weight (g) : 808g
Product Dimentions : 167x77x186 mm
Remark : Content and color may vary in different regions and packages.

AiMesh

AiMesh
• Primary AiMesh Router
• AiMesh Node

Device Access Control

Allow you to block access to unwanted websites and apps.
Web & Apps Filters
Time Scheduling
Reward
Safe Browsing

Customized Internet Schedule
• Maximum Device Access Control Profile :12
• Maximum Device Access Control Content Filter Rule :12

Dashboard : Dashboard

Self-Defined Network
"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."

Self-Defined Network Type

• Employee
• Guest Portal
• Guest Network
• Scheduled Network
• IoT Network
• VPN Network
• Maximum Self-Defined Network Rule :16

VLAN

• Captive Portal for Free WiFi
• VPN WiFi
• WiFi Scheduling : One Time Access
• WiFi Scheduling : Weekly Schedule
• WiFi share : QR code, PDF file
• Bandwidth Limiter
• AP isolate
• DNS Server Connection

Security
• AiProtection
• VPN
• WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Firewall
• Maximum Firewall Keyword Filter :64
• Maximum Firewall Network Service Filter :32
• Maximum Firewall URL Filter : 64

AiProtection
AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

VPN
• VPN Client L2PT
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion
• Support Surfshark

Traffic Control

Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Website History

WAN

Internet Connection Type
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• IPSec
• Dual WAN
• 3G / 4G LTE Dongle
• 4G / 5G Auto Mobile Tethering
• Port Forwarding
• Port Triggering
• DMZ
• DDNS
• NAT Passthrough
• PPTP Pass-Through
• L2TP Pass-Through
• IPSec Pass-Through

LAN
• DHCP Server
• IGMP Snooping
• IPTV
• LAN Link Aggregation
• VLAN

Wireless

• UTF-8 SSID
• WiFi MAC Address Filter

• Maximum MAC Filters : 64
• Wireless Scheduler

USB application
• 4G / 5G Auto Mobile Tethering
• Media Server
• Samba Server
• FTP Server
• Shared Folder Privileges

User Interface
• WEB : ASUSWRT
• APP : ASUS ExpertWiFi APP
• Management
• Multiple Site Management

Administration

• Configuration Backup and Restore
• Diagnosis Tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
