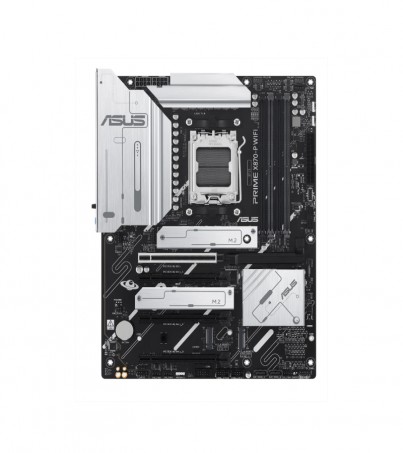

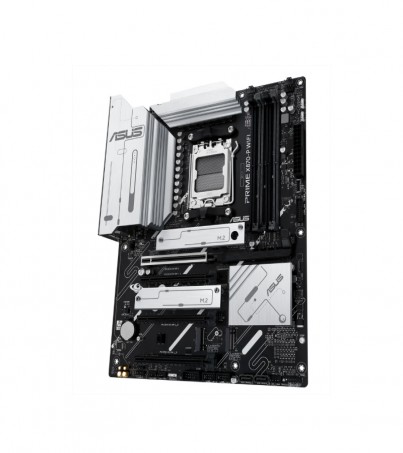

MAINBOARD (เมนบอร์ด) ASUS PRIME X870-P WIFI-CSM (AMD SOCKET AM5 DDR5 ATX)

Asus

PRIME X870-P WIFI-CSM

AM5 (7000 Series - Raphael) , AM5 (8000 / 8000 G Series - Phoenix) , AM5 (9000 Series - Granite Ridge)

170W

AMD X870

Ryzen 3 , Ryzen 5 , Ryzen 7 , Ryzen 9

4

DDR5

192 GB

4800 , 5200 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7600 (OC) , 7800 (OC) , 8000 (OC)

Requires a CPU with Integrated Graphics.
—
• 1 x HDMI port**
• 2 x USB4 (40Gbps) ports support USB Type-C display outputs***
—
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
**** VGA resolution support depends on processors' or graphic cards' resolution.

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Audio Features
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
—
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

- Port

2 Port

AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU.

4 x M.2 slots
—
AMD Ryzen 9000 & 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
—
AMD Ryzen 8000 Series Desktop Processors
• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
—
AMD X870 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
• M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)****
—
** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
*** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
**** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs. Port

AMD Ryzen 9000 & 7000 Series Desktop Processors*
• 1 x PCIe 5.0 x16 slot (supports x16 mode)
—
AMD Ryzen 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
—
AMD X870 Chipset
• 3 x PCIe 4.0 x16 slots (support x1 mode)***
—
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
*** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
*** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

1 x PCIe 5.0 x16 Slot , 3 x PCIe 4.0 x16 Slot

Realtek 2.5Gb Ethernet

100/1000/2500 Mbps

Wi-Fi 7*
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band**
- Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
- Bluetooth v5.4***
—
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

4 Port

- Port

- Port

- Port

2 x USB4 (40Gbps) (2 x USB Type-C)
1 x USB 10Gbps (1 x Type-A)
3 x USB 5Gbps (3 x Type-A) Port

- Port

- Port

1 Port

- Port

3 Port

1 x Wi-Fi module
1 x BIOS FlashBack button

1 Port

ATX

24 + 8 + 8 Pin

30.5 x 24.4 cm

3 Years
