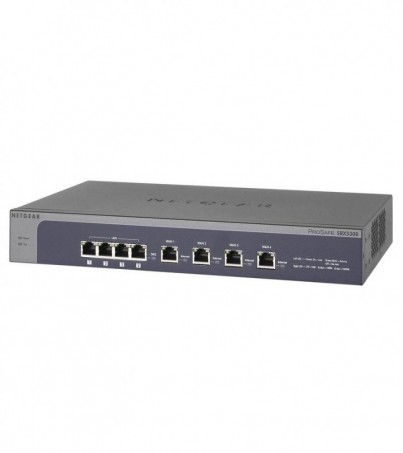

Netgear ProSafe Quad WAN Gigabit SSL VPN Firewall SRX5308

Model

Brand

NETGEAR

Series

ProSafe

Model

SRX5308-100NAS

Details

Firewall Type

Gen 2 Stateful Filter

Type

Wired

Wireless Technology

None

Simultaneous Sessions

200000

Throughput

924 Mbps (LAN-to-WAN)

Maximum Users

< 10

Ports

Gigabit RJ45 Ports WAN/LAN: 4/4
DMZ Interfaces (Configurable): 1

LAN Ports

4 x RJ-45

Wired Speed

10/100/1000 Mbps

Encryption Standard

56-bit DES, 168-bit 3DES, AES(128, 192, 256 bit)/SHA-1, MD5

VPN

IPsec VPN (3DES) Throughput: 180 Mbps
SSL VPN Throughput: 21 Mbps
Dedicated IPsec VPN Tunnels: 125
Dedicated SSL VPN Tunnels: 50
VPN Pass Through: IPsec, PPTP, L2TP
Key Exchange: IKE, Manual Key, Pre-shared Key, PKI, X.509 v3

Power Input

AC 100-240V, 50/60 Hz Universal Input, DC 5V/5A Output Internal Power Supply

Dimensions & Weight

Dimensions

13" x 1.7" x 8.2"

Weight

4.6 lbs.

Features

Features

Maximum Number of VLANs: 254

Stateful Packet Inspection (SPI): Port/Service Blocking, Denial-of-service (DoS) Prevention, Stealth Mode, Block TCP Flood, Block UDP Flood, WAN/LAN Ping Response Control

Firewall Functions: Port Range Forwarding, Port Triggering, DNS proxy, MAC Address Cloning/spoofing, NTP Support, UPnP, Auto-Uplink on Switch Ports, L3 Quality of Service (QoS),LAN-to-WAN and WAN-to-LAN(ToS), Bandwidth Profiling

Content Filtering: Web Components (Proxy, Java, ActiveX, Cookies), Web Keyword Blocking, Trusted Domains

User Authentication for VPN: Active Directory, LDAP, Radius, WIKID, MIAS, NT Domain, Local User Database

SSL:
SSL Version Support: SSLv3, TLS1.0
SSL Encryption Support: DES, 3DES, ARC4, AES(ECB, CBC, XCBC, CNTR)128, 256 bit
SSL Message Integrity: MD5, SHA-1, MAC-MD5/SHA-1, HMAC-MD5/SHA-1
SSL Certificate Support: RSA, Diffie-Hellman, Self
SSL VPN Platforms Supported: Windows 2000/XP/Vista/Windows 7 (32, 64 bit), MAC OS X 10.4+

Flash Memory/RAM: 64 MB/512 MB

Certifications: VPNC (Basic, AES Interop)

System Requirements: Cable, DSL, or Wireless Broadband Modem, Internet Service, Network Card for Each Connected PC, Network Software (e.g. Windows), Internet Explorer 5.0 or Higher or Mozilla Firefox 1.0 or Higher

Four Gigabit WAN ports for load balancing or failover protection

Hardware accelerated data flow architecture allows for 1Gbps of LAN-to-WAN throughput

Supports up to 125 IPsec VPN tunnels and 50 SSL VPN tunnels for secure remote access
