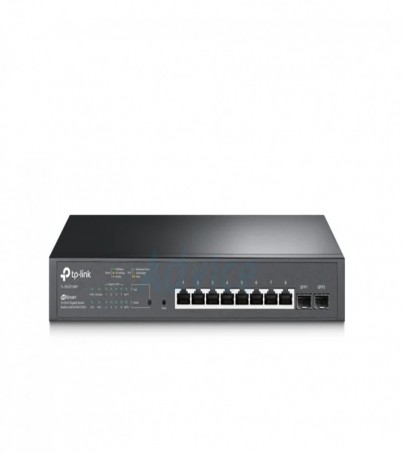

สวิตช์เครือข่าย Gigabit Switching Hub 8 Port TP-LINK TL-SG2210MP (11'',8 POE,+2 SFP)

TL-SG2210MP

8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
2× 100/1000 Mbps SFP Slots

None

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

20Gbps

N/A

8K

14.9Mpps

9KB

4.1Mbit

Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log

VLAN Group - Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN
Protocol VLAN
GVRP
Voice VLAN

AAA
802.1X
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
Static/Dynamic/Permanent Port Security
Broadcast/Multicast/Unicast Storm Control
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI)
IP/Port/MAC based access control

N/A

N/A

1

10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF

N/A

PoE

PoE+ 8 Ports /150 W

12.2W (110V / 60Hz with no PD connected)
173.9W (110V / 60Hz with 150W PD connected)

Operating Temperature: 0 - 50℃ (32 - 122℉);
Storage Temperature: -40 - 70℃ (-40 - 158℉)
Operating Humidity: 10 - 90% RH non-condensing
Storage Humidity: 5 - 90% RH non-condensing

CE, FCC, RoHS

N/A
