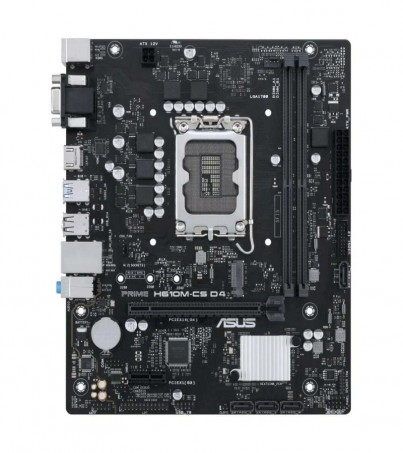

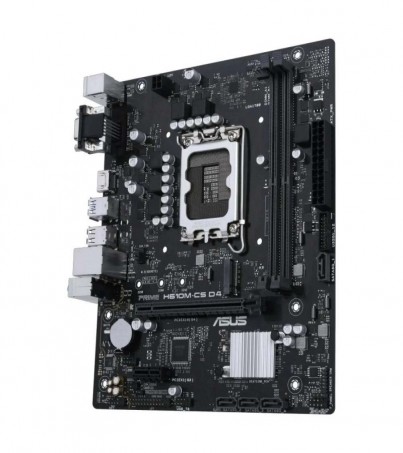

เมนบอร์ด MAINBOARD (1700) ASUS PRIME H610M-CS DDR4 (By SuperTStore)

H610M-CS (DDR4)

Intel® Socket LGA1700 for 14th / 13th / 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports up to Intel® 65W CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel

1700

Intel H610

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 NonECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

* Actual memory data rate depends on the CPU types and DRAM modules, for
more information refer to www.asus.com for memory support list

3200

1 x D-Sub port
1 x HDMI® port**

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.

N/A

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192kHz playback

Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Intel® 12th Gen Processors
1 x PCIe 4.0 x16 slot

Intel® H610 Chipset
1 x PCIe 3.0 x1 slot

PCIe 4.0

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Intel® H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports

NVMe

1

Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header

Power related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector

Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports

Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header

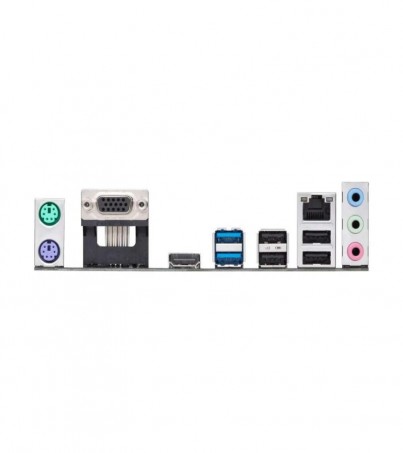

2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x D-Sub port
1 x HDMI® port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port

1 x Realtek 1Gb Ethernet

None

Micro ATX

N/A

128 Mb Flash ROM, UEFI AMI BIOS

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O

ASUS Q-Design
- Q-DIMM
- Q-Slot

ASUS Thermal Solution
- Aluminum heatsink design Luminous anti-moisture coating USBGuard

ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
    TurboV EVO
    EPU
    DIGI+ VRM

ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR

UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

Windows® 11 64-bit,
Windows® 10 64-bit

N/A
