ASUS Z270 MARK 2

Name: ASUS Z270 MARK 2
Brand: asus
SKU: supt6359-
Price: 10090 THB
Availability: InStock

16%

11,990.00

฿ 10,090.00

ฟรี

ได้รับภายใน : 09 ส.ค. ~ 11 ส.ค., 2026

สามารถเก็บเงินปลายทางได้

การรับประกัน

การรับประกัน : มีการรับประกัน 1 ปี

คืนสินค้าภายใน 15 วัน

คุณสมบัติทั่วไป

คำอธิบายสินค้า

รายละเอียดสินค้า

คะแนนและรีวิว

Q & A

คุณสมบัติทั่วไป

สิ่งที่ให้มาในกล่อง		MODEL	ASUS Z270 MARK 2
การรับประกัน	รับประกันโดยร้านผู้จัดจำหน่าย	ระยะเวลาการรับประกัน	1 year

คำอธิบายสินค้า

Overclocking design — Push memory frequencies and CPU performance to extremes
Thermal Radar Core+ — Instant fan tuning and intelligent system cooling
Qualified Vendor List (QVL) — Perfectly compatible with high-performance workstation graphics cards
TUF components — Certified military-grade caps, chokes & MOSFETs for tough duty
Extensive connectivity — HDMI, DVI, dual USB 3.1 Type-A and M.2 sockets
Dual PCI Express® slots — Supports bridging of SLI graphics cards to deliver 1.5x greater transfer bandwidth

รายละเอียดสินค้า

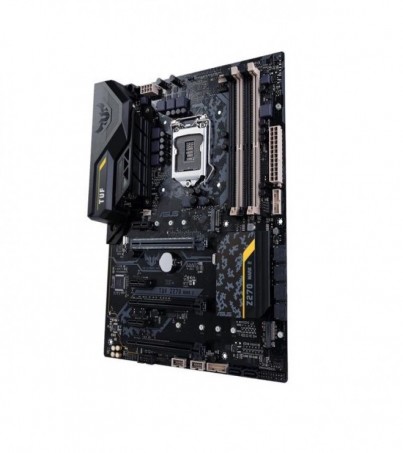

รายละเอียดของสินค้า ASUS TUF Z270 MARK 2

Intel® LGA 1151 ATX motherboard with DDR4 3866 (O.C.), dual M.2 and USB 3.1, HDMI, Intel® Optane™ memory ready

Overclocking design — Push memory frequencies and CPU performance to extremes
Thermal Radar Core+ — Instant fan tuning and intelligent system cooling
Qualified Vendor List (QVL) — Perfectly compatible with high-performance workstation graphics cards
TUF components — Certified military-grade caps, chokes & MOSFETs for tough duty
Extensive connectivity — HDMI, DVI, dual USB 3.1 Type-A and M.2 sockets
Dual PCI Express® slots — Supports bridging of SLI graphics cards to deliver 1.5x greater transfer bandwidth

Total Stability, Guaranteed Compatibility

24 / 7 RELIABILITY

CPU
Intel® Socket 1151 for 7 th/6 th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel® Z270
Memory
4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
Graphic
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Multi-GPU Support
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD CrossFireX™ Technology
Expansion Slots
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/2.0 x16 (x2 mode)
3 x PCIe 3.0/2.0 x1
Storage
1 x M.2 Socket 3* 1, , with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology* 2
Intel® Optane™ Memory Ready * 3
LAN
Intel® I219V, 1 x Gigabit LAN Controller(s)
ASUS Turbo LAN Utility
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USB Ports
ASMedia® USB 3.1 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, +teal blue, Type-A)
Intel® Z270 Chipset :
8 x USB 3.1 Gen 1 port(s) (4 at back panel, +blue, 4 at mid-board)
Intel® Z270 Chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
Special Features
TUF Features:
TUF ENGINE! Power Design :
- 4 +2 Digital Phase Power Design
- TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ Power Control Utility
Ultimate COOL! Thermal Solution :
- Thermal Radar Core+
Safe & Stable! Guardian Angel :
- TUF ESD Guards 2
- TUF LANGuard
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
File Transfer
- Cloud GO!
- File Transfer
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Turbo APP
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (teal blue)
4 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
