FUJITSU Image Scanner ScanSnap iX1600 (By SuperTStore)

Specifications

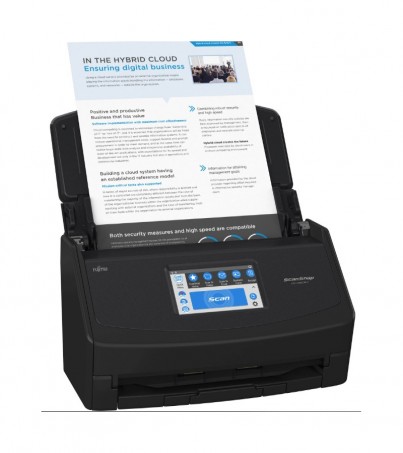

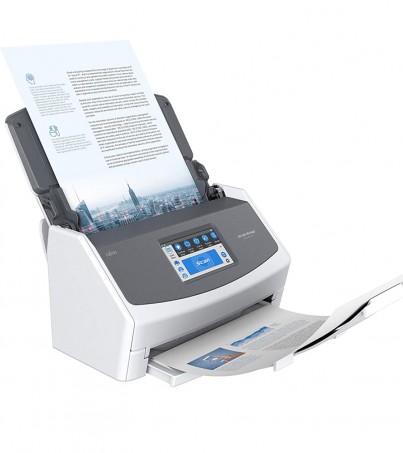

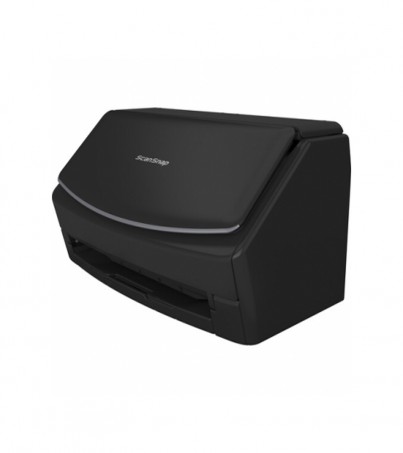

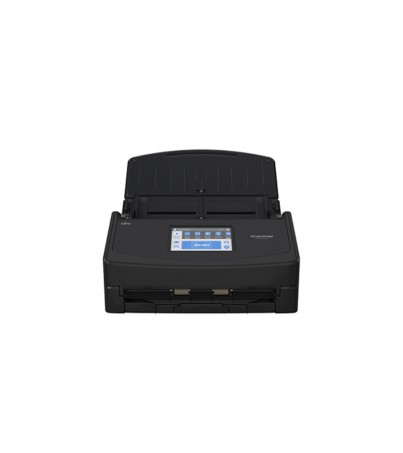

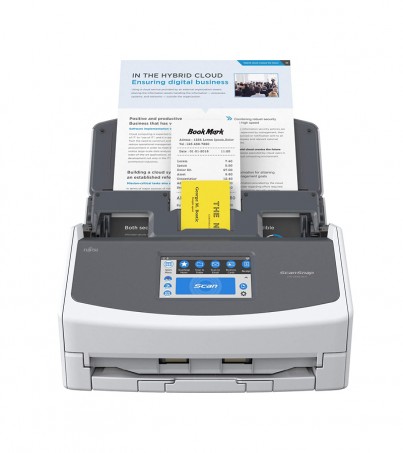

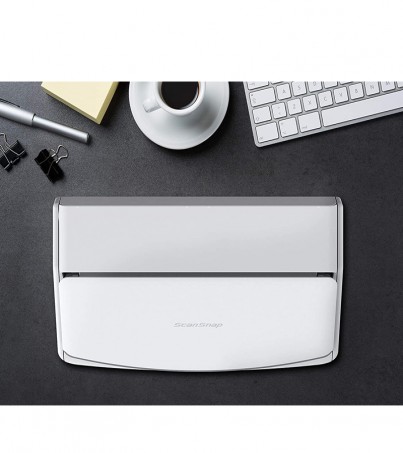

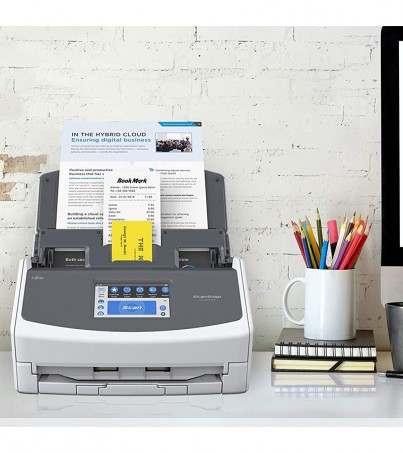

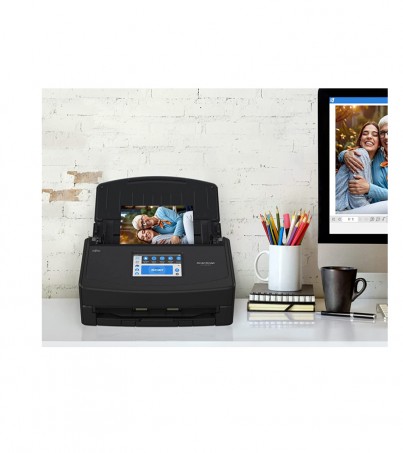

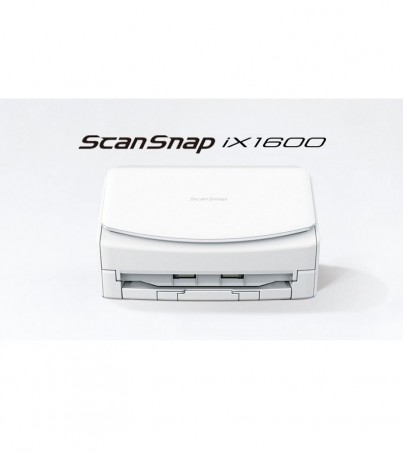

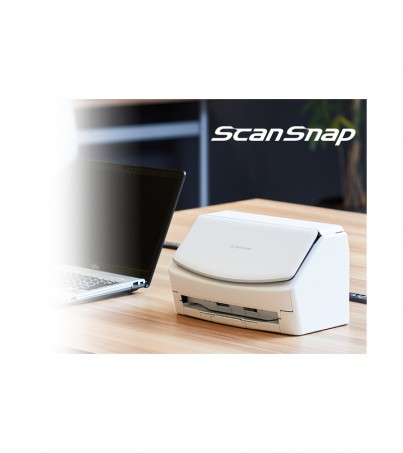

Product Name		ScanSnap iX1600 (White / Black)
Scanner Type		ADF (Automatic Document Feeder) / Manual Feed, Duplex
Scanning Speed*1 (A4 portrait)	Auto mode*2	Simplex / Duplex: 40 ppm
	Normal mode	Simplex / Duplex: 40 ppm (Color / Grayscale: 150 dpi, Monochrome: 300 dpi)
	Better mode	Simplex / Duplex: 40 ppm (Color / Grayscale: 200 dpi, Monochrome: 400 dpi)
	Best mode	Simplex / Duplex: 40 ppm (Color / Grayscale: 300 dpi, Monochrome: 600 dpi)
	Excellent mode*3	Simplex / Duplex: 10 ppm (Color / Grayscale: 600 dpi, Monochrome: 1,200 dpi)
Scanning Color Mode		Color, Grayscale, Monochrome, Automatic (Color / Grayscale / Monochrome*3 detection)
Image Sensor		Color CIS x 2 (Front x 1, Back x 1)
Light Source		3 color LED (Red / Green / Blue)
Optical Resolution		600 dpi
Document Size	Normal Scan*4	Minimum 50.8 x 50.8 mm (2 x 2 in.) Maximum 216 x 360 mm (8.5 x 14.17 in.)
	Manual Scan	A3, B4, 279 x 432 mm (11 x 17 in.)
	Long Paper Scanning*5	3,000 mm (863 mm in 32-bit) Smart Device: 863 mm (Duplex), 1,726 mm (Simplex)
Paper Weight (Thickness)		40 to 209 g/m2 (11 to 56 lb) A8 or less: 128 to 209 g/m2 (34 to 56 lb) Cards: 0.76 mm or less (Compliant with the ISO7810 ID-1 type) (Includes embossed cards in landscape orientation)
ADF Capacity*6		50 sheets (A4, 80 g/m2 or 20 lb)
Multifeed Detection		Overlap detection (Ultrasonic sensor), Length detection
Interface	USB	USB3.2 Gen1x1 / USB2.0 / USB1.1 (Connector Type: Type-B)*7
	Wi-Fi	IEEE802.11a/b/g/n Frequency band: 2.4 GHz
Wi-Fi Interface	Connection Mode	Access Point Connect Mode (Infrastructure mode)*8 Direct Connect Mode (Ad-hoc mode)
	Security	WEP (64bit / 128bit), WPA (TKIP / AES), WPA2 (AES), WPA-PSK (TLIP / AES), WPA2-PSK (AES)
	Easy Installation	WPS2.0
	Rated Power (EIRP) (Others)	2.4 GHz: 11b: +19.0dBm / 11g: +20.5dBm / 11n/ac: +20.5dBm (20 / 40MHz)
LCD		4.3 in. color TFT touch screen
Power Requirements		AC 100 to 240 V, 50 / 60 Hz
Power Consumption	Operating Mode	17 W or less
	Sleep Mode	USB connected: 1.5 W or less Wi-Fi connected: 1.6 W or less
Operating Environment	Temperature	5 to 35 °C (41 to 95 °F)
	Relative Humidity	20 to 80% (Non-condensing)
Environmental Compliance		ENERGY STAR®, RoHS

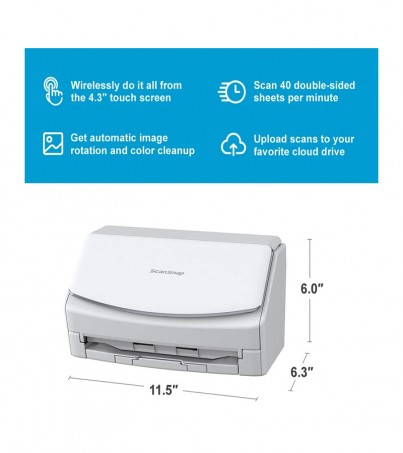

Dimensions (W x D x H)*9		292 x 161 x 152 mm (11.5 x 6.3 x 6.0 in.)
Weight		3.4 kg (7.5 lb)
Driver		ScanSnap specific driver Windows®: Does not support TWAIN / ISIS® macOS: Does not support TWAIN
Software*10		ScanSnap Home (All-in-one document management software/driver) ScanSnap Manager (Conventional driver) Kofax Power PDF Standard (Windows) Kofax Power PDF Standard for Mac (Mac) ABBYY FineReader for ScanSnap™
Included Items		Safety Precautions, AC cable, AC adapter, USB cable, Receipt Guide

1. Scanning speeds may vary due to the system environment used.
2. Scans will be made in "Best mode" if shorter sides are less than 105 mm and in "Better mode" if not.
3. Available only when connecting to a computer.
4. A3 scans are possible with use of A3 carrier sheets.
5. Available in all modes except for "Excellent mode".
6. Maximum capacity varies, depending upon paper weight.
7. Some computers do not recognize the ScanSnap when it is connected to a USB 3.2 Gen1x1 /3.0 port. In this case, please use a USB 2.0 cable.
8. Access Point Connect Mode requires a Wi-Fi access point or router.
9. Excluding the stacker and other external attachments.
10. Installation and updates require Internet availability. Software/driver updates to the latest versions are recommended.

System Requirements for PC

Compatible Operating Systems		Windows
		10 / 8.1 (32-bit / 64-bit)*1	7 (32-bit / 64-bit)
Driver / Applications*2	ScanSnap Home*4	Supported	Supported
	ScanSnap Manager	Supported	Supported
	Kofax Power PDF Standard*5	Supported	Supported
	ABBYY FineReader for ScanSnap™	Supported	Supported
Hardware Requirements*3	CPU*6	Intel® Celeron 1.8 GHz (2 core) or higher (Recommended: Intel® Core™ i5 2.5 GHz or higher)
	Memory Capacity*6	2 GB or more (Recommended: 4 GB or more)
	Display Resolution	1,024 × 768 pixels or more
	Disk Capacity*7*8	3.8 GB or more of free hard disk space

1. Operate Windows in desktop mode. ScanSnap scanners do not run with Windows® 10 ARM-based PCs such as Surface® Pro X (Microsoft®).
2. Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support site for the latest support information.
3. The ScanSnap device may not work if the connected computer does not meet these requirements.
4. ScanSnap Home Installation requires a computer and Internet. Activation is also necessary for software use. Please visit the ScanSnap Support site for download information.
5. Please refer to the included license certificate to download the software.
6. Scanning speeds may drop if the recommended CPU, memory capacity and USB 1.1 requirements are not met.
7. Indicated disk capacity requirements apply when downloading ScanSnap Home.
8. .NET Framework 4.7 or later must be installed. If it is not installed, it is installed with ScanSnap Home. Up to 4.5 GB of disk space is required for the installation.

*The system requirements may change depending on the support policies of the above system and third-party software.

System Requirements for Mac

Compatible Operating Systems		macOS v.11.0 or later	macOS v.10.12.4 or later
Driver / Applications*1	ScanSnap Home*3	Supported	Supported
	ScanSnap Manager	Supported	Supported
	Kofax Power PDF Standard for Mac*4	Supported	Supported
	ABBYY FineReader for ScanSnap™	Supported	Supported
Hardware Requirements*2	CPU*5*6	Intel® Core™ i5 1.4 GHz or higher (Recommended: Intel® Core™ i5 2.5 GHz or higher)
	Memory Capacity*6	2 GB or more (Recommended: 8 GB or more)
	Display Resolution	1,024 x 768 pixels or more
	Disk Capacity	2.0 GB or more of free hard disk space

1. Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support site for the latest information.
2. The ScanSnap device may not work if the connected computer does not meet these requirements.
3. ScanSnap Home Installation requires a computer and Internet. Activation is also necessary for software use. Please visit the ScanSnap Support site for download information.
4. Please refer to the included license certificate to download the software.
5. The ScanSnap device also operates with Apple Silicon-based Mac computers. Please refer to the ScanSnap Support site for the latest information.
6. Scanning speeds may drop if the recommended CPU, memory capacity and USB 1.1 requirements are not met.

*The system requirements may change depending on the support policies of the above system and third-party software.

System Requirements for iOS / Android™ / Kindle Fire (ScanSnap Connect Application)
