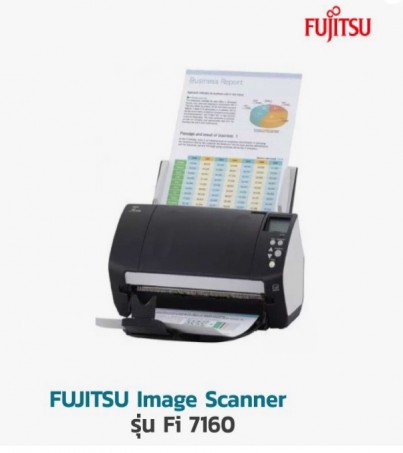

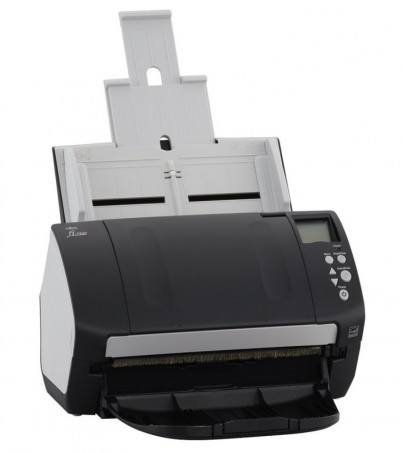

FUJITSU Image Scanner fi-7160 (Black)

0.0 ( 0 )

฿ 28,990.00 SAVE 6%
฿ 27,500.00


ได้รับภายใน : 03 เม.ย. ~ 05 เม.ย., 2023


มีการรับประกัน 1 ปี

คืนสินค้าภายใน 15 วัน

Q & A
สิ่งที่ให้มาในกล่อง FUJITSU Image Scanner fi-7160 (Black)   MODEL FUJITSU Image Scanner fi-7160 (Black)
Connect Type USB ADF Capacity no
Media Handling Capacity A4 Scan Resolution (DPI) ความเร็วในการสแกนแบบหน้าเดียว 60 แผ่น/นาที
การรับประกัน รับประกันโดยร้านผู้จัดจำหน่าย Warrant_period Warranty 1 year
Q & A
  • ความละเอียดสูงสุด 600 dpi (optical)
  • รองรับเอกสารขนาด A8-A4 เอกสารต่อเนื่องยาว 5.588 mm
  • ความเร็วในการสแกนแบบหน้าเดียว 60 แผ่น/นาที
Q & A

Fujitsu Scanner รุ่น FJS-Fi-7160 (Black)
- Supported operating systems : Windows® 8 (32-bit/64-bit), Windows® 7 (32-bit/64-bit),Windows Vista® (32-bit/64-bit), Windows® XP (32-bit/64-bit),Windows Server® 2012, Windows Server® 2008 (32-bit/64-bit)
- Scanner type : Automatic Document Feeder(ADF)
- Scanning modes : Simplex / Duplex, Color / Grayscale / Monochrome
- Image sensor type : Color CCD (Charge-coupled device) x 2 (front x 1, back x 1)
- Light source : White LED Array x 2 (front x 1, back x 1)
- Multi-feed detection : Ultrasonic multi-feed detection sensor x 1, Paper detection sensor
- Document size : Maximum = 216 x 355.6 mm (8.5 x 14 in.)Minimum = 50.8 x 54 mm (2 x 2.13 in.) (Landscape / Portrait)Long paper scanning(Thickness) = 216 x 5,588 mm (8.5 x 220 in.)
- Paper weight : 27 to 413 g/m2 (7.2 to 112 lbs), 127 to 209 g/m2 (34 to 56 lb) for A8 size,1.4 mm or less for plastic card
- Scanning speed : Simplex: 60 ppm (200/300 dpi), Duplex: 120 ipm (200/300 dpi)
- Paper chute capacity : 80 sheets (A4: 80 g/m2 or 20 lb) (Active loadable ADF)
- Expected daily volume : 4,000 sheets / day
- Optical resolution : 600 dpi
- Output resolution : 50 to 600 dpi (adjustable by 1 dpi increments), 1200 dpi (driver)*10
- Interface : USB3.0 (USB2.0 is also available)
- Power requirements AC 100 to 240 V ± 10%
- Dimensions: 300 x 170 x 163 mm (11.81 x 6.69 x 6.42 in.)
- Weight : 4.2 kg (9.26 lb)
- Included software / drivers : PaperStream IP (TWAIN/ISIS) Driver, Software Operation Panel, Error
- Recovery Guide, PaperStream Capture, ScanSnap Manager for fi Series,
- Scan to Microsoft SharePoint, ABBYY FineReader for ScanSnap,
- Scanner Central Admin Agent


Provides unmatched performance and market-leading document imaging capabilities with faster scanning speeds

  • Fast, 60 ppm / 120 ipm scanning in color, grayscale and monochrome
  • 80-sheets Automatic Document Feeder (ADF)
  • Advanced paper handling technology for the ultimate in feeding reliability
  • LED light-source
  • Scanner Central Admin Suite
  • Embossed card scanning (1.4 mm thickness)
  • iSOP (Intelligent Sonic Paper Protection)
  • Comes with PaperStream IP (TWAIN/ISIS) and PaperStream Capture

Scanning Performance

With duplex scanning speeds of 120 images per minute at 300 dpi in Color, Grayscale, and Monochrome, the fi-7160 protect your documents with acoustic sensors, ensure your data is captured with smart ultrasonic technology, and reduce rescans by cleaning up documents automatically in a single pass. Reliability is enhanced even further with new skew prevention technology for exceptional paper handling.

  • USB 3.0 for forward compatibility
  • Continuous hard and embossed card scanning up to 1.4mm thick
  • Ultrasonic Double-feed Detection sensor for security against lost images
  • Scan sticky notes, taped receipts, and labels while securing against multifeeds
  • Long document support up to 5.6 m (18.3 feet) in PaperStream IP
PaperStream IP (32/64 Bit)

The PaperStream IP driver takes the work out of image cleanup when scanning invoices, ID cards, receipts, forms, or any other day to day paperwork. PaperStream IP automatically improves the image quality, removes unwanted backgrounds, and optimizes your scanned images for optical character recognition. It is fast and easy to use. Our latest innovation, Assisted Scan, allows users to replace poor images by visually selecting the image they lack rather than learning driver settings. If driver settings need to be adjusted for rare and difficult documents, our preview function allows scan operators to see their adjustments in real-time without time consuming re-scans. PaperStream IP works with both ISIS and TWAIN applications.

PaperStream Capture

PaperStream Capture makes advanced capture with Fujitsu scanners easier than before. PaperStream Capture has a streamlined User Interface to reduce training time and increase productivity. Not only have we provided users with the most common profiles used by customers—black and white, color, and auto-color—new profiles are easily created or modified through a wizard. We have organized the release screen so that batches can easily be suspended or continued. PaperStream Capture is also integrated with PaperStream IP’s assisted scanning for visual cleanup of documents. The reading of barcodes and patch codes make batch separation easy, improving document organization.

Centralized Efficiency

Whether the infrastructure is fixed or expanding, managing technology efficiently inside the organization is key to reducing total cost of ownership and the Fujitsu scanner provides system administrators with advanced software tools to centrally manage the scanner more productively and cost effectively.

  • Agent, console and server remote scanner management
  • Real-time Fujitsu scanner inventory
  • Status and alert monitoring
  • Centralized driver update deployment
  • Consumable management

Central Admin

High-impact scanning, low environmental impact

In keeping with Fujitsu’s long-standing commitment to safeguarding the environment, the fi-7160 is the latest business scanner to adhere to strictest ecological regulations throughout the entire manufacturing process. The design and manufacture of the fi-7160 meet Energy Star’s energy consumption requirements and the European Union’s Reduction of Hazardous Substances and Volatile Organic Compounds regulations.


Functional Specifications
Image Sensor TypeColor CCDs (Color Charge Coupled Device)
Light SourceWhite LED Array
Optical Resolution600 dpi
Output Resolution(1)Color (24-bit)50 to 600 dpi
(adjustable by 1 dpi increments, 1200 dpi(2))
Grayscale (8-bit)
Output Color DepthColor: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Internal Video Processing65536 levels (16-bit)
Image Processing Function
HardwareDeskew cropping
SoftwareMulti-image, Blank page skip, i-DTC, Advanced-DTC, Simplified-DTC, sRGB, Auto color, Deskew cropping, Punch hole removal, Tab cropping, Upper lower separation, Error diffusion, Dither, Moire removal, Image Emphasis, Color cleanup, Dropout color (R,G,B, None, white,Specified, Color Saturation), Edge repair, Vertical Streaks Reduction
Scanning Speed(3
(A4, Portrait)
ADFSimplex: 60 ppm, Duplex: 120 ipm
(200 dpi / 300 dpi)
ADF Capacity(6)80 Sheets ( A4: 80 g/m² or 20 lb. )
Daily Duty Cycle4,000 Pages
Document SizeADF Minimum50.8 mm x 54 mm (2 in. x 2.13 in.) (Landscape / Portrait)
ADF Maximum(7)216 mm x 355.6 mm (8.5 in. x 14 in.)
Long Document210 mm x 5,588 mm (8.27 in. x 220 in.)(18.3 ft.)(8)
ADF Feeding
Paper Weight
Letter27 g/m² to 413 g/m² (7.2 lb. to 112 lb.)
A8 Sheets127 g/m² to 209 g/m² (34 lb. to 56 lb.)
Card(9)Up to 1.4 mm portrait and landscape feeding(10)
Interface(11)USB 3.0 (backward compatible)
Minimum PC SpecificationPaperStream IP i5 2.5 MHz Processor, 4 GB RAM
Physical Specifications
Power Requirements100 to 240 VAC ±10 %
Power Consumption38 W or less Sleep: 1.8 W; Standby: 0.35 W
Dimensions (WxDxH)(12)300 mm x 170 mm x 163 mm (11.8 in. x 6.7 in. x 6.4 in.)
Weight4.2 kg (9.26 lb.) or less
Environmental Compatibility(13)ENERGY STAR® / RoHS / EPEAT Silver
Operating EnvironmentTemperature5 to 35°C (42 to 95°F)
Relative Humidity20 %-80 % (non-condensing)
Inbox ContentsADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM,
Getting Started Guide
Bundled SoftwarePaperStream IP (TWAIN/ISIS) Driver, Software Operation Panel, Error Recovery Guide, PaperStream Capture, ScanSnap Manager for fi Series, ABBYY FineReader for ScanSnap, Scanner Central Admin Agent
Options2D Barcode for PaperStream, Post-scan Imprinter, Carrier Sheet
OS SupportWindows® 10 (32-bit/64-bit), Windows® 8 / 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Vista® (32-bit/64-bit), Windows XP® (32-bit/64-bit), Windows Server® 2012 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2008 (32-bit/64-bit), Windows Server® 2008 R2 (64-bit)
Feed Detection FeaturesUltrasonic Double Feed Detection Sensor,
iSOP (Intelligent Sonic Paaper Protection),
Intelligent Multi-Feed Function (Manual Bypass)
Other FeaturesEmbossed Card Scanning Capability, Long Document Scanning, Scanner Central Admin management, USB 3.0 Support,
iSOP (Intelligent Sonic Paper Protection),
Automatic: Color Recognition, Paper-Size Detection, De-skew Correction
